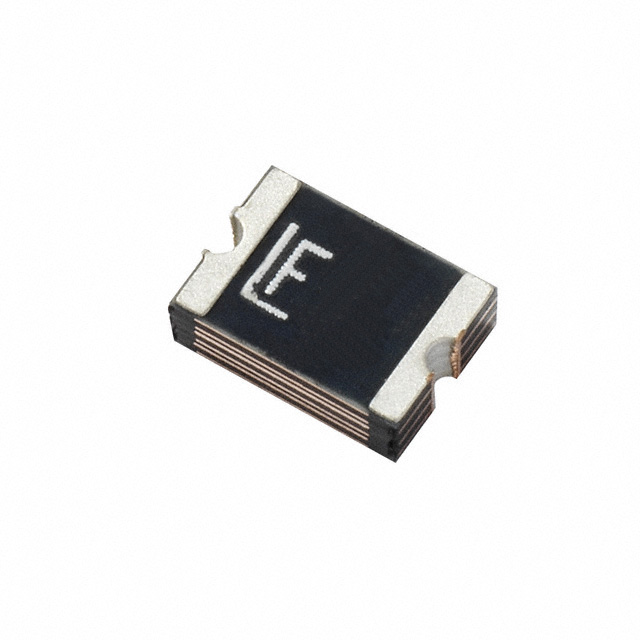

LITTELFUSE 1812L300MR 自恢复保险丝, PTC, 1812, 6VDC, 3A
聚合物 PTC 自恢复保险丝 6V Ih 表面贴装型 1812(4532 公制),凹陷
得捷:
PTC RESET FUSE 6V 3A 1812
立创商城:
自恢复 3A 6VDC
e络盟:
自复式保险丝PTC, 表面贴装, POLYFUSE 1812L Series, 3 A, 5 A, 6 VDC, -40 °C
艾睿:
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this 1812L300MR PTC resettable fuse from Littelfuse is perfect for you! This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 1.5Max mm tall and 3.41Max mm deep.
Chip1Stop:
PTC Resettable Fuse 3Ahold 5Atrip 6VDC 100A 0.8W 4s 0.012Ohm SMD Solder Pad 1812 T/R
Verical:
PTC Resettable Fuse 3Ahold 5Atrip 6VDC 100A 0.8W 4s 0.012Ohm SMD Solder Pad 1812 T/R
Newark:
# LITTELFUSE 1812L300MR PPTC Resettable Fuse, SMD, POLYFUSE 1812L Series, 3 A, 5 A, 6 VDC, -40 °C
Win Source:
FUSE PTC RESET 3.0A 6V 1812 SMD
额定电压DC 6.00 V
工作电压 6 VDC
跳闸时间 4 s
额定电流 100 A
耗散功率 0.8 W
电阻 0.04 Ω
保持电流 3 A
跳闸电流 5 A
额定电流Max 100 A
保持电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.37 mm
宽度 3.07 mm
高度 1.5 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1812L300MR Littelfuse 力特 | 当前型号 | 当前型号 |
MINISMDC300F-2 力特 | 类似代替 | 1812L300MR和MINISMDC300F-2的区别 |
