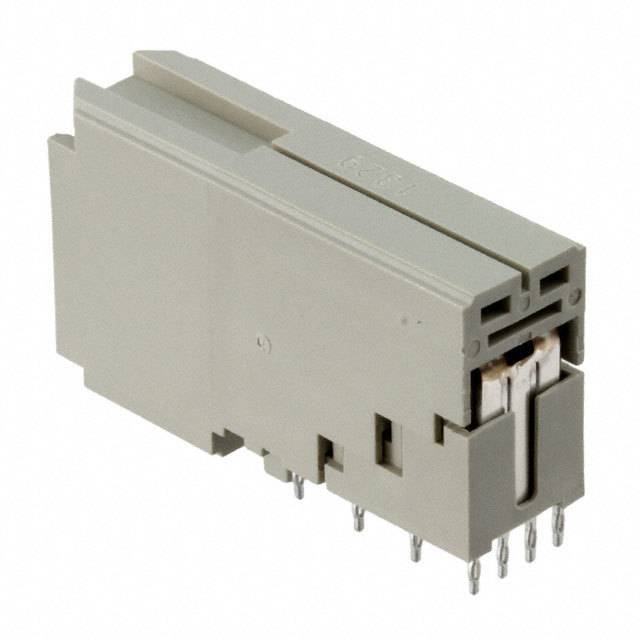

电源到板 SLIM UPM 4POS. R/A HDR ASSEMBLY
4 位置 接头,公型刀片 焊接 板边缘,通孔,直角
得捷:
CONN HDR 4POS EDGE R/A SLDR
立创商城:
针座
贸泽:
电源到板 SLIM UPM 4POS. R/A HDR ASSEMBLY
艾睿:
The 1903977-1 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This PL connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a plug type gender. This connector has a single port. It has a right angle body orientation. 1903977-1 is housed in thermoplastic. This device has a maximum current rating of 8 A/contact. This product is 8.5 mm long, 16.88 mm tall and 29.34 mm deep. Its 16 terminals use the press fit termination method.
Chip1Stop:
Conn Power PL 4 POS Press Fit RA Thru-Hole 16 Terminal 1 Port
Verical:
Backplane Connector PL 4 POS Press Fit RA Thru-Hole 16 Terminal 1 Port Box/Tube
MASTER:
Backplane Connector PL 4 POS Press Fit RA Thru-Hole 16 Terminal 1 Port Box/Tube
Powell:
Power to the Board SLIM UPM 4POS. R/A HDR ASSEMBLY
Online Components:
SLIM UPM 4POS. R/A HDR ASSEMBL
Electro Sonic:
SLIM UPM 4POS. R/A HDR ASSEMBL
触点数 4
极性 Male
触点电镀 Tin
排数 1
方向 Right Angle
针脚数 4
额定电流Max 8A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 ThroughHole
长度 8.5 mm
宽度 29.34 mm
高度 16.88 mm
封装 ThroughHole
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
