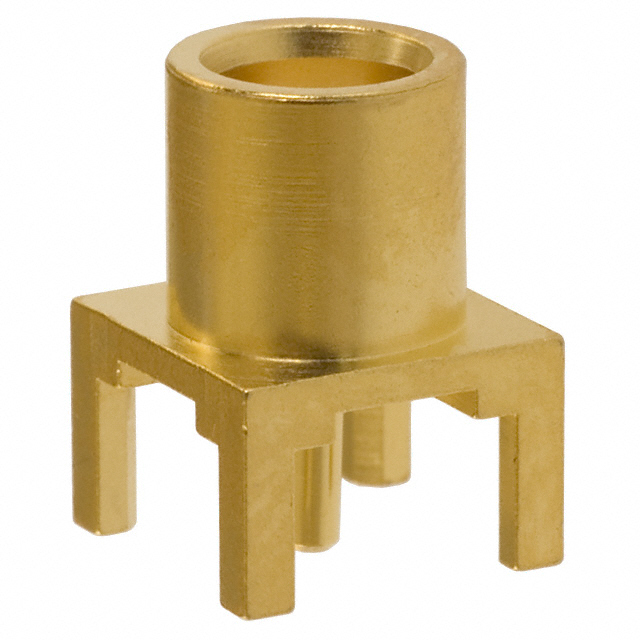

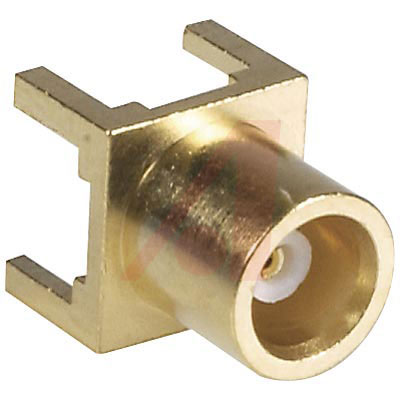

133-3701-211

射频/同轴连接器, MCX同轴, 直型插座, 通孔安装 垂直, 50 ohm, RG178, RG316, 铍铜

**Working Voltage Rating at Sea Level for Cable Type:** RG-178 — 250 VRMS; RG-316, 0.086" semi-rigid and uncabled adapters — 335 VRMS. **Frequency Range:** 0–6 GHz. **Materials:** Body — Brass, gold-plated; Crimp sleeves — Copper, gold-plated; Mounting hardware — Brass nuts, phosphor bronze lockwasher, gold or nickel plated. **Insulation:** PTFE fluorocarbon. **Features:**

* 30% Smaller than the SMB Connectors

* Plating: Gold Over Brass Except Where Noted

得捷:
CONN MCX JACK STR 50 OHM PCB

艾睿:
Conn MCX 0Hz to 6GHz 50Ohm Solder ST Thru-Hole F Gold Over Nickel

Allied Electronics:
Connector; MCX; 50 Ohms; 0 to 6 GHz; PCMount; 1000 V RMS Min.; Brass; Gold

MASTER:
Conn MCX 0Hz to 6GHz 50Ohm Solder ST Thru-Hole F Gold Over Nickel

Electro Sonic:
Conn MCX 0Hz to 6GHz 50Ohm Solder ST Thru-Hole F Gold Over Nickel
