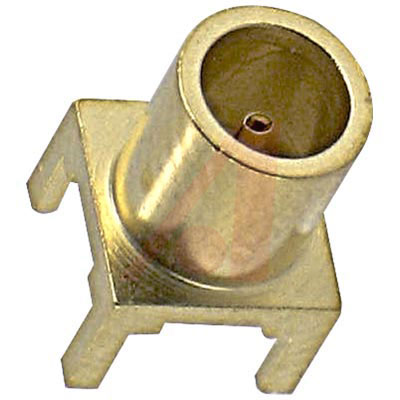

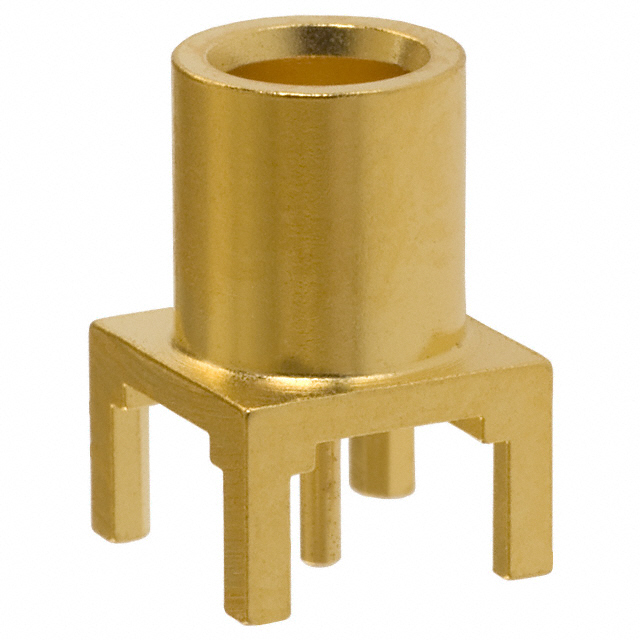

133-8701-211

射频/同轴, MCX 母, 直型, 75Ω, 焊接

**Working Voltage Rating at Sea Level for Cable Type:** RG-178 — 250 VRMS; RG-316, 0.086" semi-rigid and uncabled adapters — 335 VRMS. **Frequency Range:** 0–6 GHz. **Materials:** Body — Brass, gold-plated; Crimp sleeves — Copper, gold-plated; Mounting hardware — Brass nuts, phosphor bronze lockwasher, gold or nickel plated. **Insulation:** PTFE fluorocarbon. **Features:**

* 30% Smaller than the SMB Connectors

* Plating: Gold Over Brass Except Where Noted

得捷:
CONN MCX JACK STR 75 OHM PCB

e络盟:
射频/同轴, MCX 母, 直型, 75Ω, 焊接

艾睿:
Conn MCX RCP 0Hz to 6GHz 75Ohm Solder ST Thru-Hole Gold

Allied Electronics:
Connector; MCX; 75 Ohms; 0 to 6 GHz; PC Mount; 1000 V RMS Min.; Brass; Gold

Verical:
Conn MCX RCP 0Hz to 6GHz 75Ohm Solder ST Thru-Hole Gold

MASTER:
Conn MCX RCP 0Hz to 6GHz 75Ohm Solder ST Thru-Hole Gold

Electro Sonic:
Conn MCX RCP 0Hz to 6GHz 75Ohm Solder ST Thru-Hole Gold
