电源到板 HSG SUBASY BLUE 120A SGL POLE
刀片式电源 - 外壳 无公型或母型之分 蓝色 -
得捷:
CONN HOUSING 1POS BLUE
贸泽:
电源到板 HSG SUBASY BLUE 120A SGL POLE
艾睿:

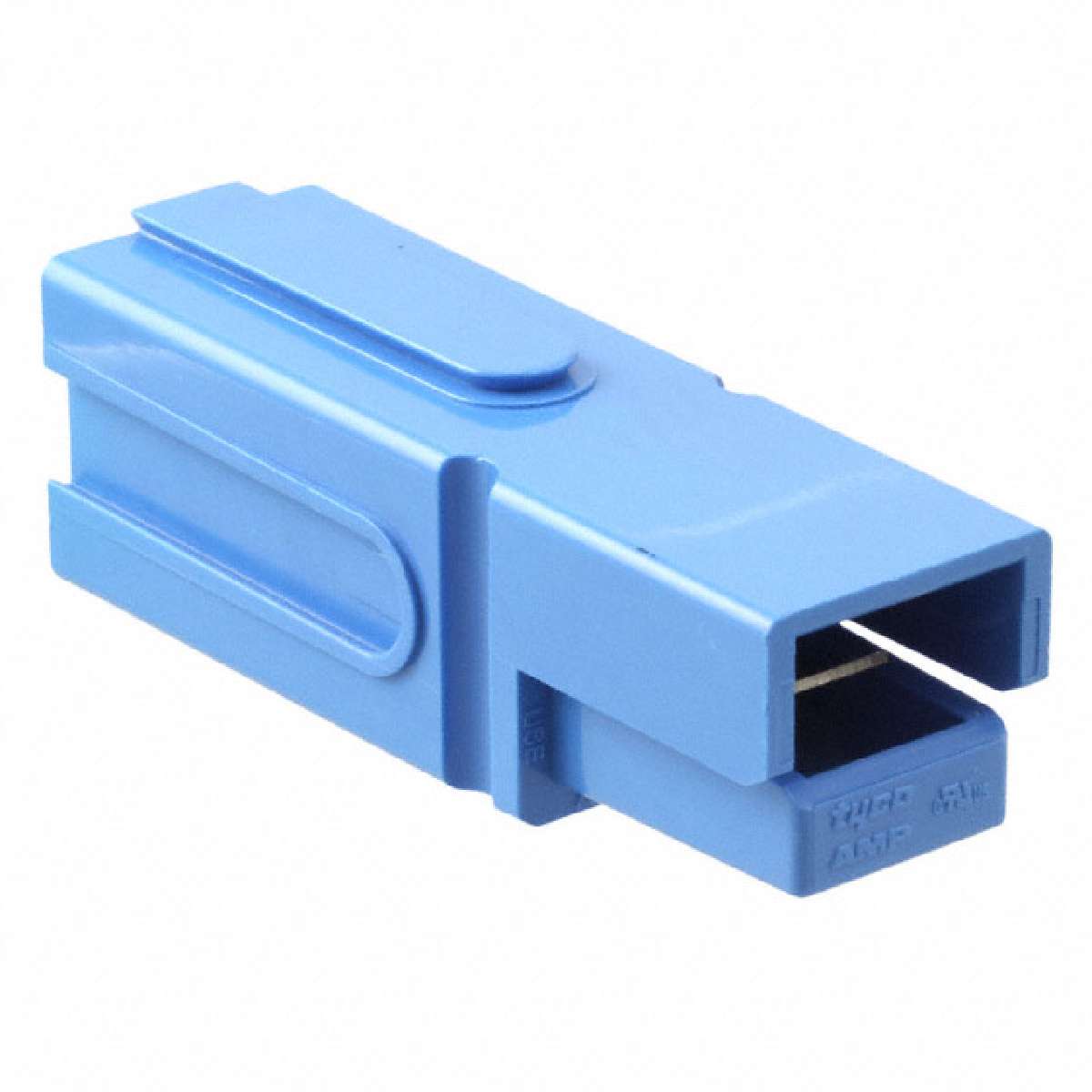

This 1604001-1 discrete wire housing from TE Connectivity can house one or multiple wires and channels for both small electronic devices and larger power applications. This PL connector has a single PL contact. It has a maximum voltage rating of 600 VDC|600VAC. It has a plug type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 120 A/contact. This rectangle connector has an operating temperature of -20 to 105 °C. Its wire is 2-6 AWG. This product is 23.99 mm long, 23.99 mm tall and 69.6 mm deep. 1604001-1 is housed in blue polycarbonate.
安富利:
Conn Housing PL 1 POS Crimp ST Loose Piece
Verical:
Conn Housing PL 1 POS Crimp ST Cable Mount Blue Box
MASTER:
SUB-ASSEMBLY, AMP POWER SERIES 120
Powell:
Power Connectors
Online Components:
120A SGL POLE HSG SUBASY,BLUE
Electro Sonic:
120A SGL POLE HSG SUBASY,BLUE
触点数 1
线规 2.00 AWG
触点电镀 Silver
额定电压DC 48.0 V
额定电流 120 A
排数 1
易燃性等级 UL 94 V-0
针脚数 1
额定电流Max 120A/触头
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压 48 V
高度 69.6 mm
外壳颜色 Blue
颜色 Blue
触点材质 Copper
工作温度 -20℃ ~ 105℃
外壳材质 Polycarbonate
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
