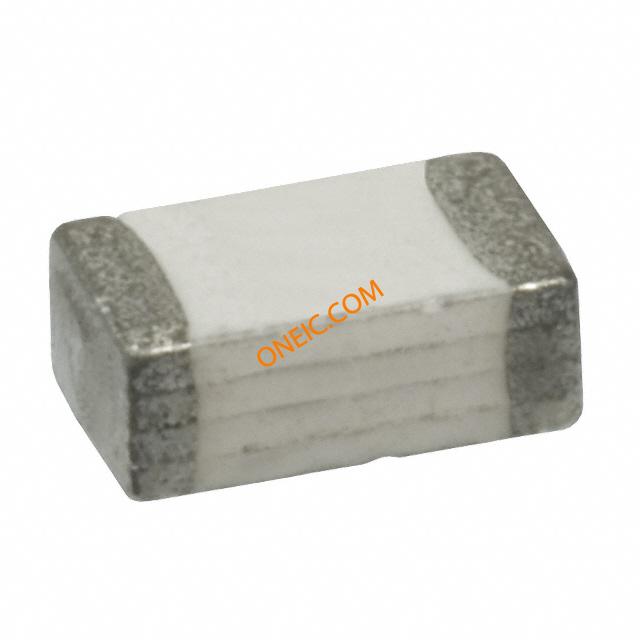

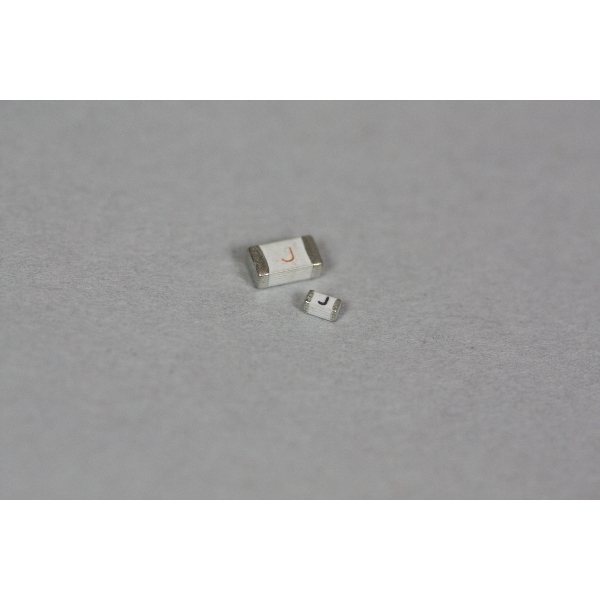

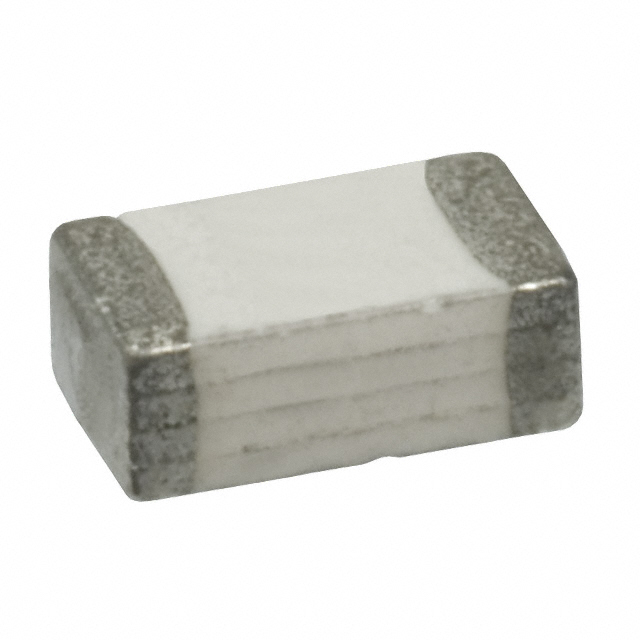

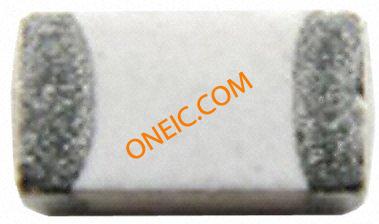

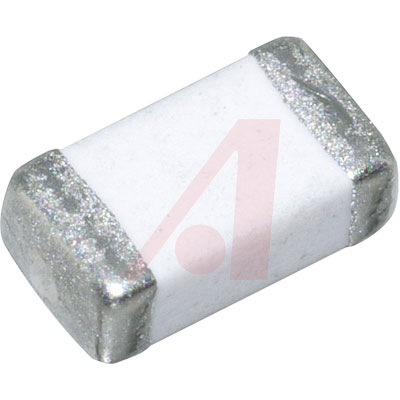

Fuse, Chip, Fast Acting, 1A, 63VDC, Ceramic Glass, SMD/SMT, SFF Series
Fast-acting fuses help provide overcurrent protection on systems using DC power sources up to 63 V. The fuse"s monolithic, multilayer design enhances high temperature performance in a wide range of circuit designs.
**Benefits:**
* Small Size with High Current Ratings
* Excellent Temperature Stability
* High Reliability and Resilience
* Strong Arc Suppression Characteristics
**Features:**
* Monolithic, Multilayer Design
* High Temperature Performance
* –55°C to +125°C Operating Range
**
Applications:* Laptops
* Digital Cameras
* Cell Phones
* Printers
* DVD Players
* Portable Electronics
* Game Systems
* LCD Monitors
* Scanners
额定电压DC 63 V
工作电压 63.0 V
额定电流 1 A
产品系列 SFF
电阻DC) 0.22 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 63 VDC
额定电压DC Max 63 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206

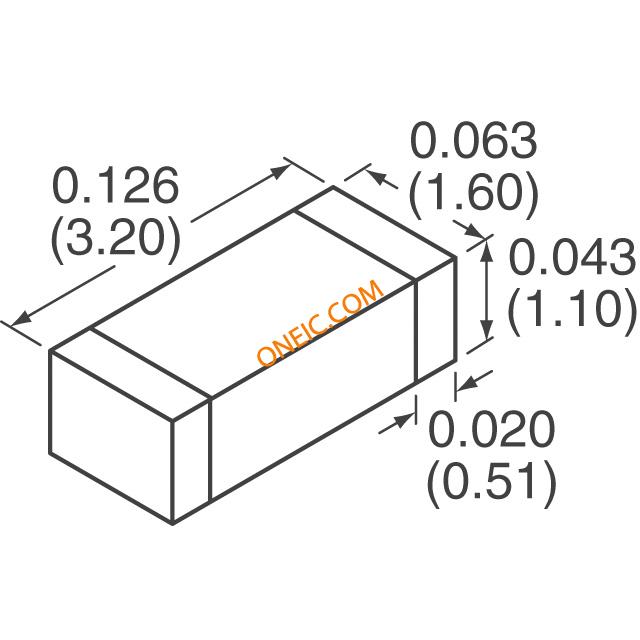

长度 3.2 mm
宽度 1.6 mm
高度 1.1 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
