1210L010WR

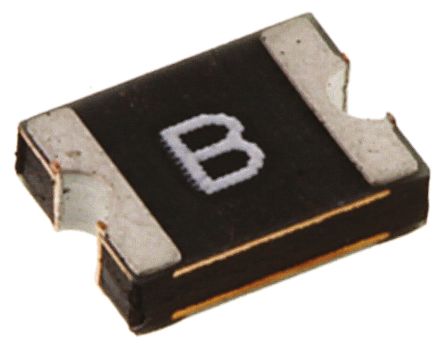

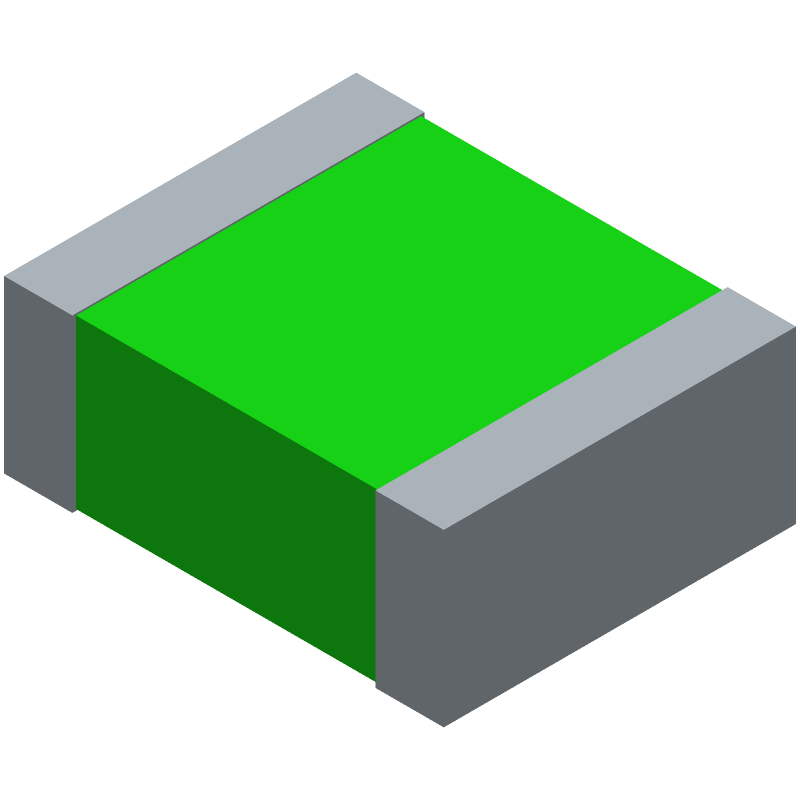

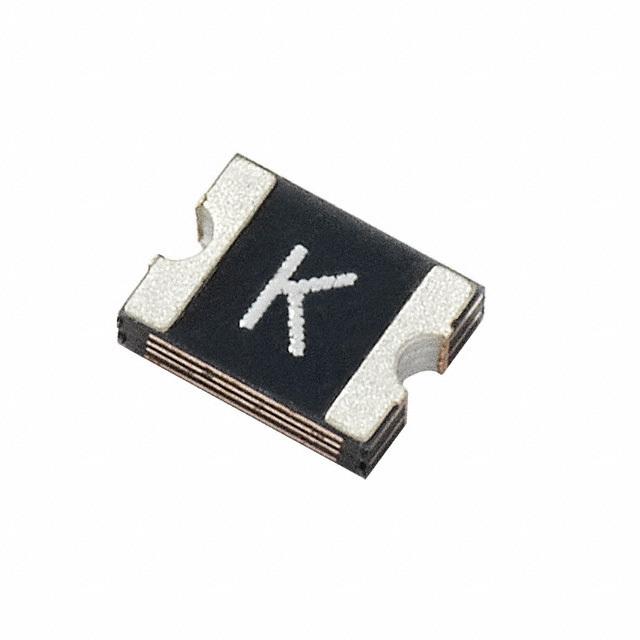

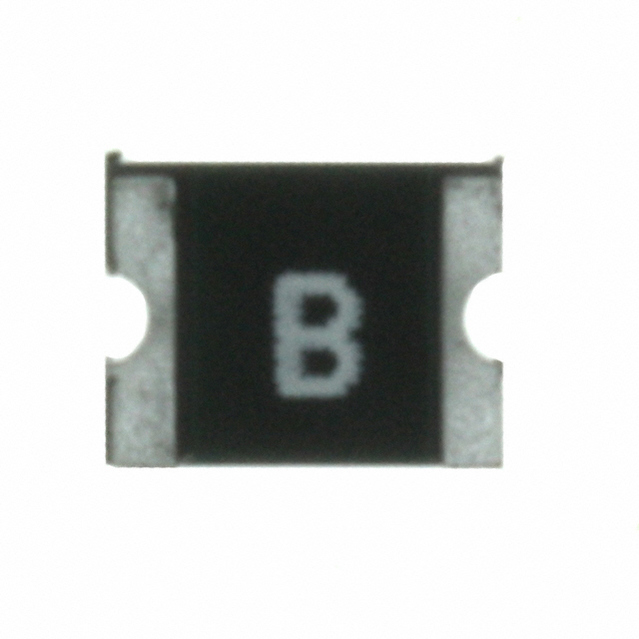

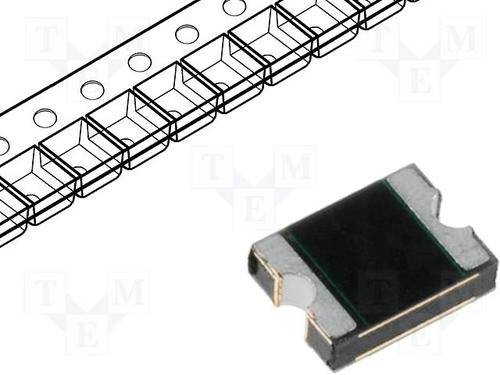

LITTELFUSE  1210L010WR  自复式保险丝, PTC, 1210, 0.1A

POLY-FUSE 可重置 PTC - 1210L 系列

Littelfuse 1210L 系列 PTC 为空间要求严格且需要可重置保护的应用提供表面安装过电流保护。

欧时:
Littelfuse 0.1A 表面固定可复位熔断器 1210L010WR, 30V dc, 3.43 x 2.8 x 1.25mm, 0.6W功耗

得捷:
PTC RESET FUSE 30V 100MA 1210

立创商城:
100mA 30V 自恢复

艾睿:
In the event of overcurrent or short, your circuit can resume normal operation with this 1210L010WR positive temperature coefficient device from Littelfuse, without the need to replace any fuses. This device has a maximum current rating of 10. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 1.25Max mm tall and 2.8Max mm deep.

Allied Electronics:
0.1A Surface Mount Resettable Fuse, 30 V dc

Chip1Stop:
PTC Resettable Fuse 0.1Ahold 0.3Atrip 30VDC 10A 0.6W 1.5s 1.6Ohm SMD Solder Pad 1210 T/R

TME:
Fuse: PTC polymer; 100mA; 1210L

Verical:
PTC Resettable Fuse 0.1Ahold 0.3Atrip 30VDC 10A 0.6W 1.5s 1.6Ohm SMD Solder Pad 1210 T/R

Newark:
# LITTELFUSE  1210L010WR  PPTC Resettable Fuse, SMD, POLYFUSE 1210L Series, 100 mA, 300 mA, 30 VDC, -40 °C

儒卓力:
**Resettable Fuse 100mA 30V SMD **
