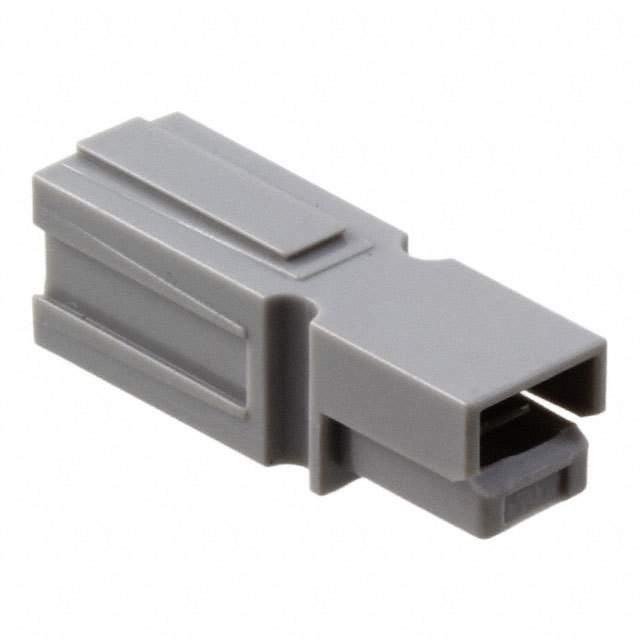

AMP FROM TE CONNECTIVITY 1445957-8 连接器外壳, Power 15/30/45系列, 插头, 插座, 1 路
HSG SUB ASY,GRAY
Product Highlights
Housing
15 AMP Series, 30 AMP Series, 45 AMP Series
Connector Type = Single-Pole Modular Connector
Current = 20 Amps., 30 Amps., 40 Amps.
Housing Color = Gray
得捷:
CONN HOUSING 1POS GRAY
e络盟:
AMP FROM TE CONNECTIVITY 1445957-8 连接器外壳, Power 15/30/45系列, 插头, 插座, 1 路
艾睿:
This 1445957-8 discrete wire housing from TE Connectivity can house one or multiple wires and channels for both small electronic devices and larger power applications. This RCP connector has a single RCP contact. This is a 1-row connector. It has a maximum voltage rating of 600 VDC|600VAC. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 40 A. Its wire is 10-20 AWG. This product is 8.4 mm long, 7.9 mm tall and 24.6 mm deep. 1445957-8 is housed in gray polycarbonate. This rectangle connector has an operating temperature of -20 to 105 °C.
安富利:
Conn Housing RCP 1 POS ST Bulk
Verical:
Conn Housing RCP 1 POS ST Cable Mount Gray Box
MASTER:
Conn Housing RCP 1 POS ST Cable Mount Gray Box
Powell:
Power Connectors
Online Components:
HSG SUB ASY,GRAY
触点数 1
工作电压 600 VAC
排数 1
易燃性等级 UL 94 V-0
针脚数 1
额定电流Max 40 A
工作温度Max 105 ℃
工作温度Min -20 ℃
长度 .968 in
宽度 7.4 mm
高度 24.6 mm
外壳颜色 Gray
颜色 Gray
工作温度 -20℃ ~ 105℃
外壳材质 Polycarbonate
产品生命周期 Active
包装方式 Box
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8538906000
