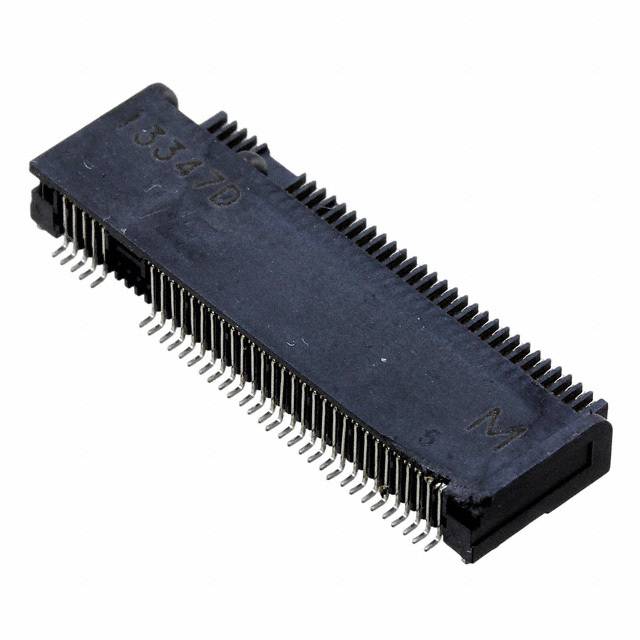

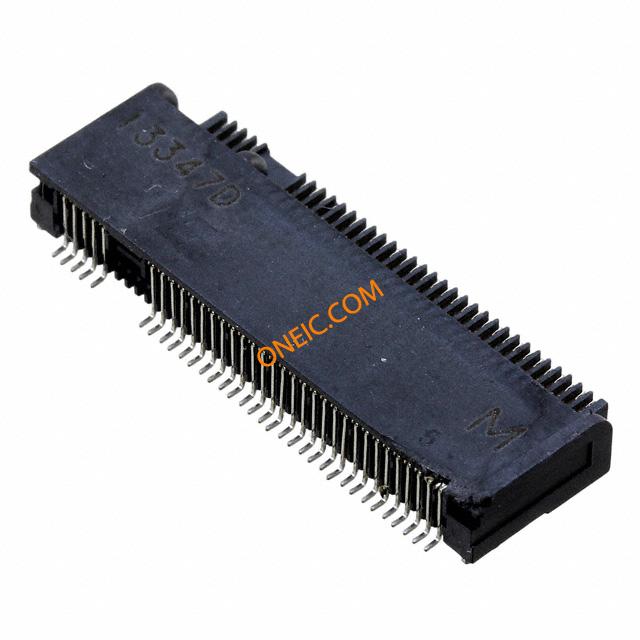

AMP FROM TE CONNECTIVITY 1-2199119-5. 连接器, 卡边, M.2NGFF, 母, 67路
67 位置 母头 M.2(NGFF)小型卡 镀金 0.020"(0.50mm) 黑色
欧时:
M.2 0.5PITCH 3.2H KEY M 15U"" AU
得捷:
CONN M.2 FMALE 67POS 0.020 GOLD
立创商城:
1-2199119-5
贸泽:
PCI Express / PCI 连接器 M.2 0.5PITCH 3.2 H
e络盟:
连接器, 卡边, M.2NGFF, 母, 67路
艾睿:
Conn Card Edge SKT 67 POS 0.5mm Solder RA SMD T/R
安富利:
Conn Card Edge 67 POS 0.5mm Solder RA SMD Embossed T/R
Newark:
# AMP - TE CONNECTIVITY 1-2199119-5 Connector, M.2 NGFF Series, Card Edge, 67 Contacts, Receptacle, 0.5 mm, Surface Mount
MASTER:
Conn Card Edge SKT 67 POS 0.5mm Solder RA SMD T/R
触点数 67
极性 Female
触点电镀 Gold, Tin
绝缘电阻 500 MΩ
排数 2
方向 Right Angle
针脚数 67
拔插次数 60
额定电流Max 0.5A/触头
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 50 VAC
安装方式 Surface Mount
引脚数 67
封装 SMD
高度 3.2 mm
封装 SMD
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 80℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Portable Devices, Consumer Electron, 通信与网络, Communications & Net, Portable Devices, Computers & Computer Peripherals, Power, Wireless, Consumer Electronics, 消费电子产品, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
