Electromechanical Relay 48VDC 5.52KΩ 15A DPDT 29x12.7x15.7mm THT Power Relay
RTE24048
Product Highlights
RT2 Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
RTE24048
安富利:
Electromechanical Relay DPDT 15A 48VDC 5.52KOhm Through Hole
Verical:
Electromechanical Relay 48VDC 5.52KOhm 15A DPDT 29x12.7x15.7mm THT Power Relay
MASTER:
RTE24048
Powell:
Reinforced PCB Relays up to 16A
Online Components:
RTE24048
Electro Sonic:
RTE24048
额定电压AC 400 V
输入电压DC 48.0 V
触点类型 DPDT
跌落电压 4.80 V
触点额定电流 15 A
线圈电压 48 VDC
线圈电流 8.7 mA
线圈功率DC 400 mW
线圈电阻 5.52 KΩ
载流 8.00 A
额定电流Max 15 A
线圈电压DC 48 V
额定功率Max 2 kVA
开关电流Max 15 A
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 8
封装 DIP

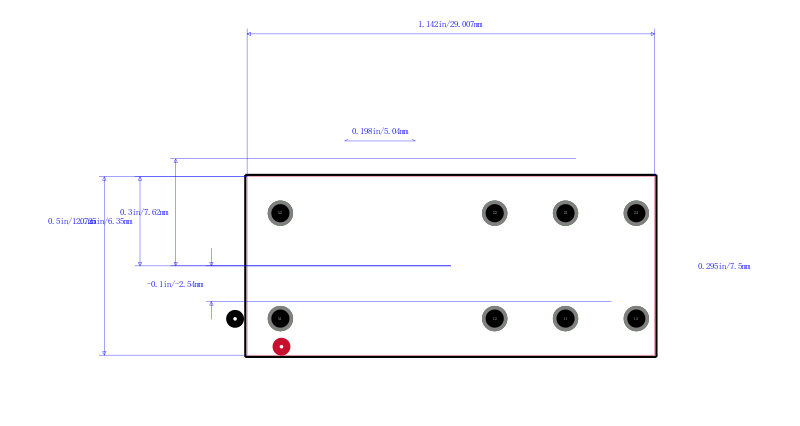

长度 29 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
触点材质 Silver Nickel
重量 13.0 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
