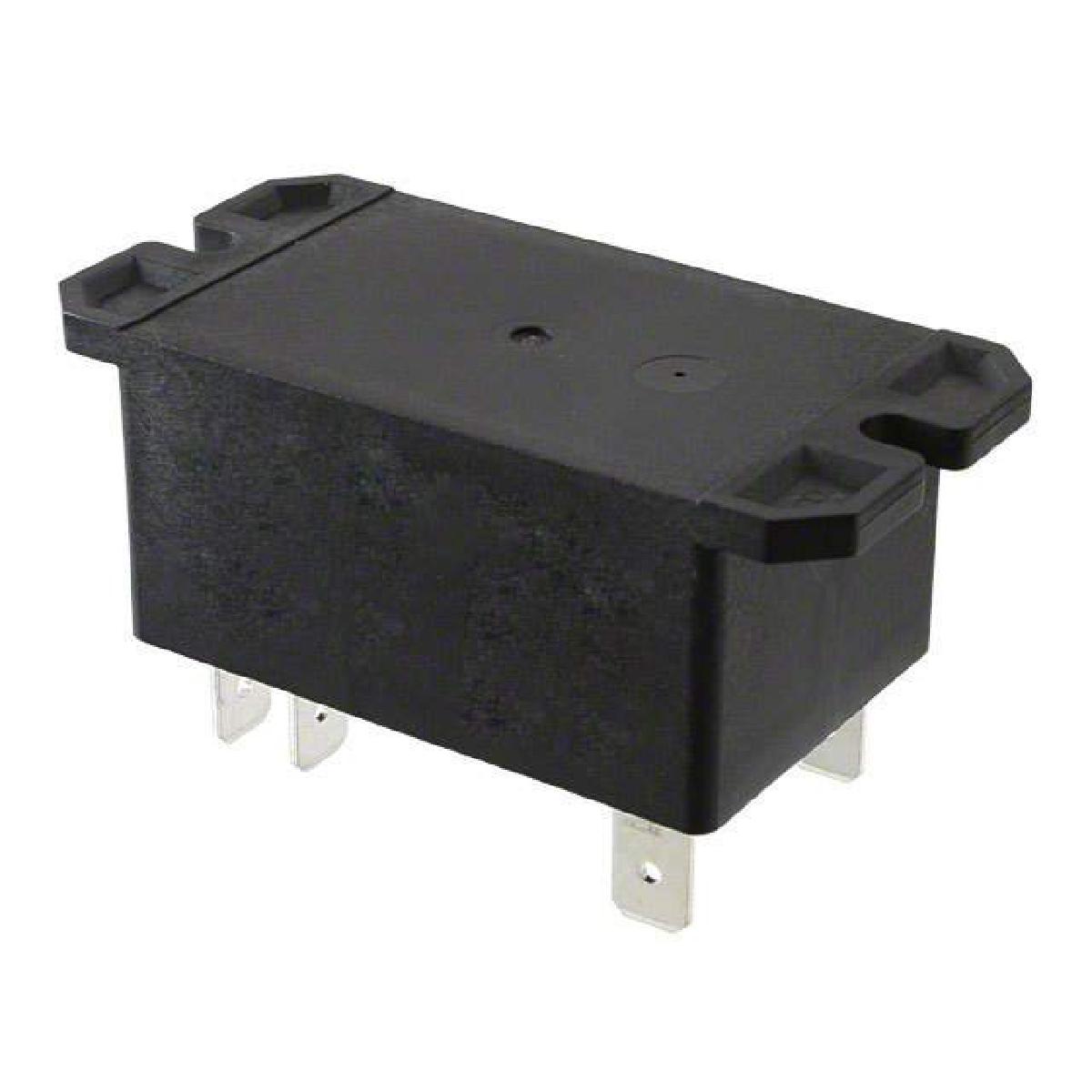

T92 系列 30 A 双刀单掷-常开 24 VDC 法兰安装 通用 功率继电器
T92S7D22-24
Product Highlights
Relay Type = Power PCB/Panel Mount Relay
Relay Style = PCB
T92 Series
Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
Contact Current Rating = 30 A
欧时:
Relay PCB DPST 2N/O 240VAC 30A
得捷:
T92S7D22-24
艾睿:
Power Relay 24VDC 40A DPST-NO68.58mm 34.54mm 37.97mm Flange
安富利:
Electromechanical Relay DPST-NO 30A 24VDC 350Ohm Flange Mount
Verical:
Electromechanical Relay 24VDC 350Ohm 40A DPST-NO 68.58x34.54x37.97mm Flange Power Relay
MASTER:
T92S7D22-24
Powell:
Power PCB Relays
Online Components:
T92S7D22-24
GOPHER:
General Purpose Relay 24 VDC COIL DPST 2 FORM A 30A CONTACTS QUICK CONNECT T92S7D22-24
Electro Sonic:
General Purpose Relay DPST-NO 2 Form A 24VDC Coil Chassis Mount
额定电压DC 24.0 V
额定电压AC 600 V
额定电流 30.0 A
输入电压DC 24.0 V
触点类型 DPST-NO
功耗 1.70 W
触点额定电流 40 A
线圈电压 24.0 V
线圈电流 68.57 mA
线圈功率DC 1.70 W
线圈电阻 350 Ω
载流 30.0 A
额定电流Max 40 A
线圈电压DC 24 V
开关电流Max 40 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压AC Max 600 V
安装方式 Panel
引脚数 8
长度 52.3 mm
宽度 34.5 mm
高度 37.97 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
