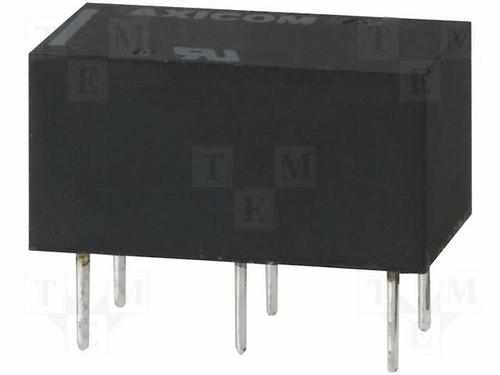

P1 系列 PC 插针 1 A 单刀双掷 24 VDC 线圈 闭锁 通孔 信号 继电器
V23026A1004B201
Product Highlights
V23026 / P1 Relay Series
DC Actuating System
Input Voltage = 24 VDC
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 1 Amps.
立创商城:
1-1393774-2
得捷:
V23026A1004B201
艾睿:
Signal Relay 24VDC 1A SPDT 13mm 7.6mm 6.9mm THT
安富利:
Electromechanical Relay SPDT 1A 24VDC 4.5KOhm Through Hole
TME:
Relay: electromagnetic; SPDT; Ucoil:24VDC; 0.46A/150VAC; 1A/30VDC
Verical:
Electromechanical Relay 24VDC 4.5KOhm 1A SPDT 13x7.6x6.9mm THT Signal Relay
MASTER:
Signal Relay - 24 VDC - SPDT - 1 A - P1/V23026 Series - Through Hole - Non Latching.
Powell:
Small Signal Relays
Online Components:
V23026A1004B201
Electro Sonic:
Signal Relay - 24 VDC - SPDT - 1 A - P1/V23026 Series - Through Hole - Non Latching.
额定电压DC 125 V
额定电压AC 150 V
输入电压DC 24.0 V
触点类型 SPDT
功耗 130 mW
上升时间 1.00 ms
触点额定电流 1 A
线圈电压 24 VDC
线圈电流 5.33 mA
线圈功率DC 128 mW
线圈电阻 4500 Ω
载流 1.00 A
额定电流Max 1 A
线圈电压DC 24 V
额定功率Max 30W, 60VA
开关电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 6
封装 DIP
长度 13.0 mm
宽度 7.62 mm
高度 6.9 mm
封装 DIP
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
