功率继电器
PE014012
Product Highlights
PE Series

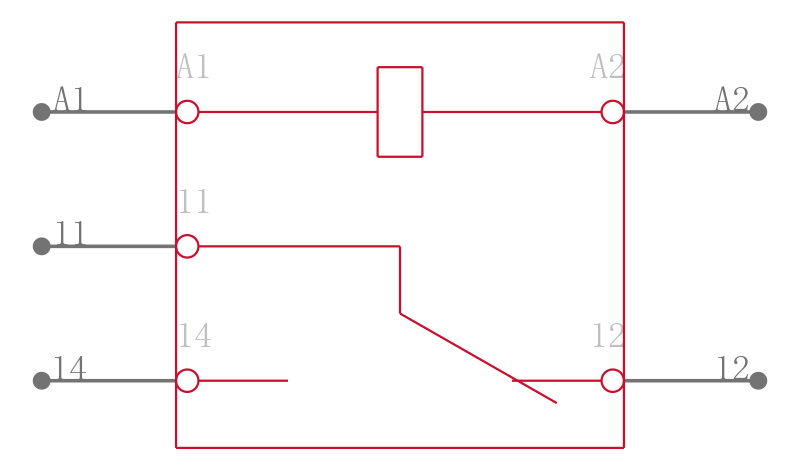

Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
PE014012
立创商城:
PE014012 12VDC
艾睿:
Electromechanical Relay 12VDC 685Ohm 5A SPDT 20x10x10mm THT Miniature PCB Relay
安富利:
Electromechanical Relay SPDT 5A 12VDC 685Ohm Through Hole
Chip1Stop:
Electromechanical Relay 12VDC 685Ohm 5A SPDT 20x10x10mm THT Miniature PCB Relay
Verical:
Electromechanical Relay 12VDC 685Ohm 5A SPDT 20x10x10mm THT Miniature PCB Relay
MASTER:
General Purpose Relay SPDT 1 Form C 12VDC Coil Through Hole
Powell:
Miniature PCB Relays
Online Components:
PE014012
Electro Sonic:
General Purpose Relay SPDT 1 Form C 12VDC Coil Through Hole
Win Source:
PE014012
额定电压DC 12.0 V
额定电压AC 400 V
额定电流 5.00 A
额定功率 200 mW
输入电压DC 12.0 V
触点类型 SPDT
功耗 210 mW
跌落电压 1.20 V
触点额定电流 5 A
线圈电压 12.0V, 12.0Vmax
线圈电流 17.52 mA
线圈功率DC 200 mW
线圈电阻 685 Ω
载流 5.00 A
额定电流Max 5 A
线圈电压DC 12 V
额定功率Max 1.25 KVA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 5
封装 插件

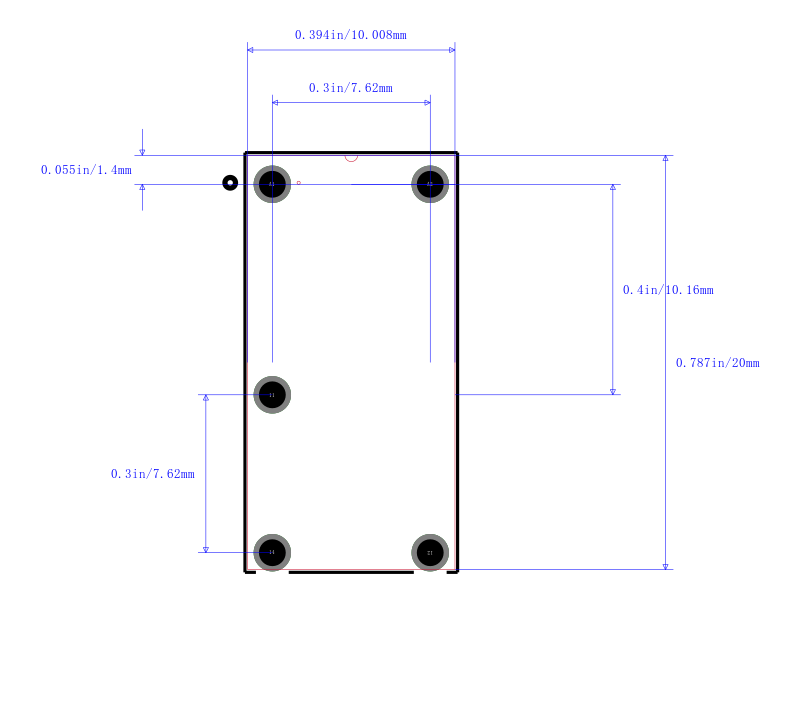

长度 20 mm
宽度 10 mm
高度 10 mm
封装 插件
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
