1-1393225-4 管装

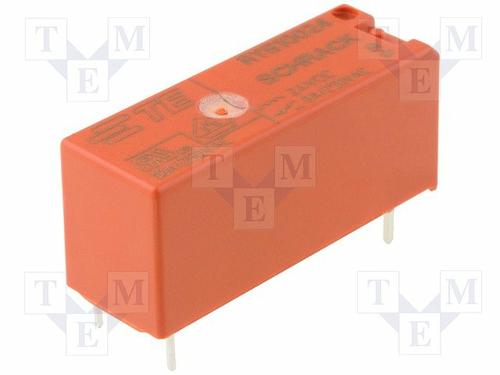

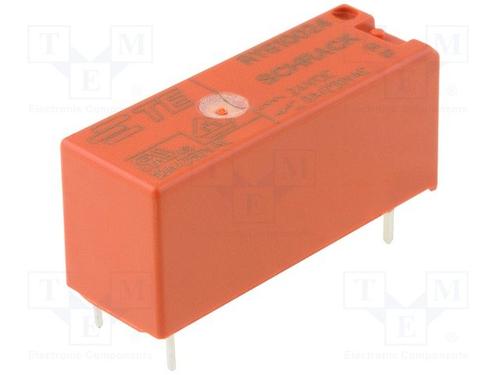

Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Product Highlights
RYII Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
1-1393225-4
艾睿:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
安富利:
Electromechanical Relay SPDT 8A 24VDC 2.35KOhm Through Hole
富昌:
RYII Series 8 A SPDT 24 VDC PCB Mount Miniature General Purpose Power Relay
Chip1Stop:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
TME:
Relay: electromagnetic; SPDT; Ucoil:24VDC; 8A/250VAC; 8A/30VDC
Verical:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
MASTER:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Electro Sonic:
Electromechanical Relay 24VDC 2.35KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
额定电压DC 24.0 V
额定电压AC 400 V
额定电流 8.00 A
额定功率 245 mW
输入电压DC 24.0 V
触点类型 SPDT
触点额定电流 8 A
线圈电压 24 VDC
线圈电流 10.2 mA
线圈功率DC 220 mW
线圈电阻 2.35 kΩ
载流 8.00 A
额定电流Max 8 A
线圈电压DC 24 V
线圈功率 245 mW
额定功率Max 2 KVA
开关电流Max 8 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
封装 Through Hole
长度 28.5 mm
宽度 10.1 mm
高度 12.3 mm
封装 Through Hole
触点材质 Silver Cadmium Oxide
重量 18 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
