S89R 系列 15 A 双刀双掷 24 VDC 插装 通用 功率继电器

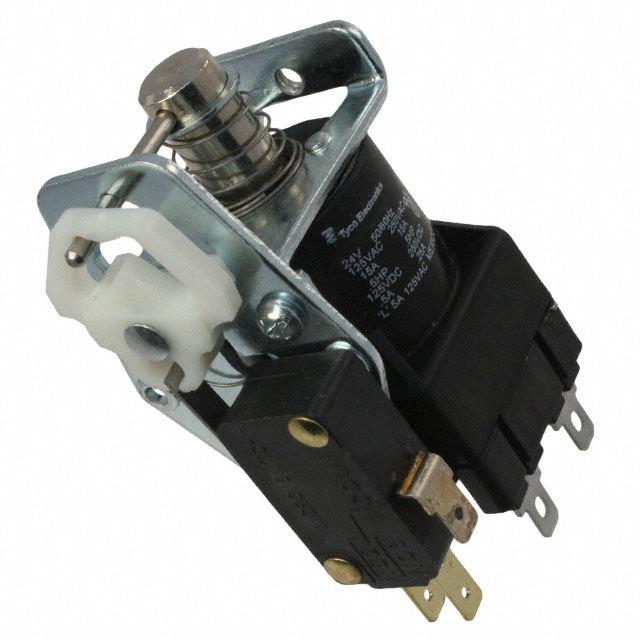

Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Product Highlights
S89R Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 15 Amps.
Latching Bistable 1 Coil Coil Magnetic System
Without Coil Suppression Diode
艾睿:
Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
富昌:
S89R 系列 15 A 双刀双掷 24 VDC 插装 通用 功率继电器
Verical:
Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
MASTER:
Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Powell:
EMG Contactors and Solenoids
Online Components:
Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Electro Sonic:
Electromechanical Relay 24VDC 92Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
额定电压AC 250 V
触点额定电流 15 A
线圈电压 24 VDC
线圈电流 260 mA
线圈电阻 92 Ω
额定电流Max 15 A
线圈电压DC 24 V
线圈功率 6.3 W
工作温度Max 60 ℃
工作温度Min -10 ℃
安装方式 Quick Connect, Chassis
高度 77.47 mm
触点材质 Silver
工作温度 -10℃ ~ 60℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536410050
