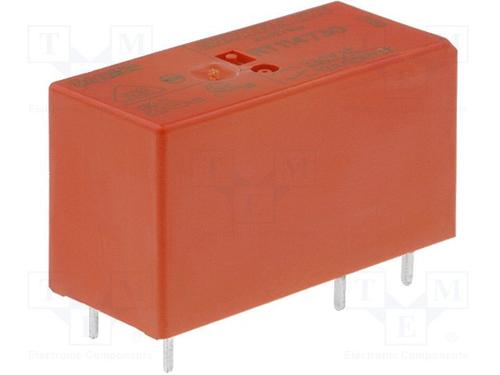

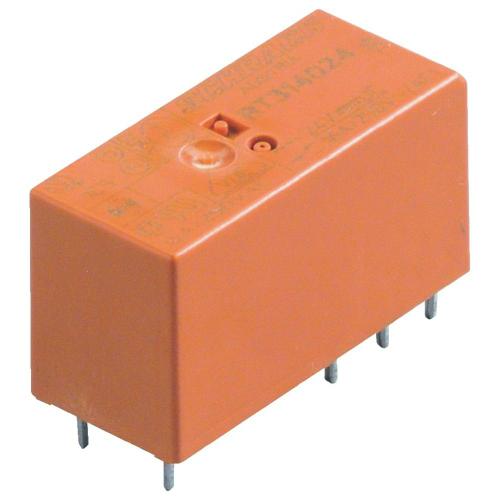

Electromechanical Relay 230VAC 32.5KΩ 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
1 pole 12A/16A, 1 form C CO or 1 form A NO contact
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient temperature 85°C DC coil
WG version: product in accordance to IEC 60335-1
Reflow version: for THR Through-Hole Reflow soldering process
艾睿:
Power Relay 230VAC 12A SPDT29mm 12.7mm 15.7mm THT
安富利:
Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole
TME:
Relay: electromagnetic; SPDT; Ucoil:230VAC; 12A/250VAC; 12A/24VDC
Verical:
Electromechanical Relay 230VAC 32.5KOhm 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
MASTER:
RT114730
Powell:
Reinforced PCB Relays up to 16A
Online Components:
RT114730
Electro Sonic:
RT114730
额定电压AC 400 V
额定电流 12.0 A

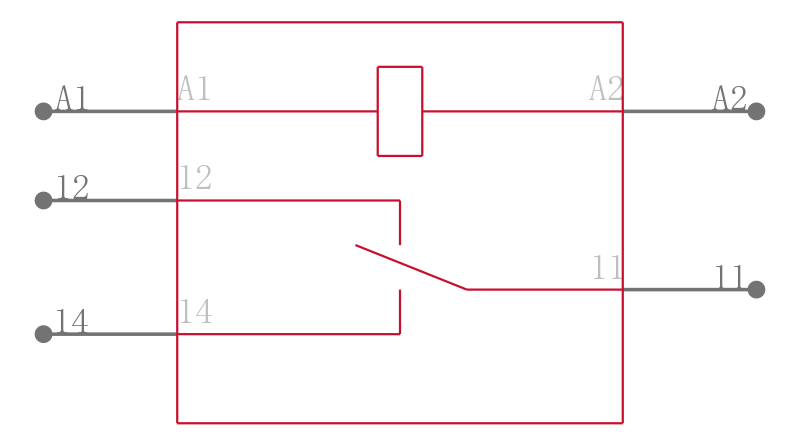

触点类型 SPDT
跌落电压 34.5 V
触点额定电流 12 A
线圈电压 230 VAC
线圈电流 3.2 mA
线圈电压AC 230 V
线圈电阻 32.5 KΩ
线圈功率AC 740 mW
额定电流Max 12 A
额定功率Max 3 KVA
开关电流Max 12 a
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V

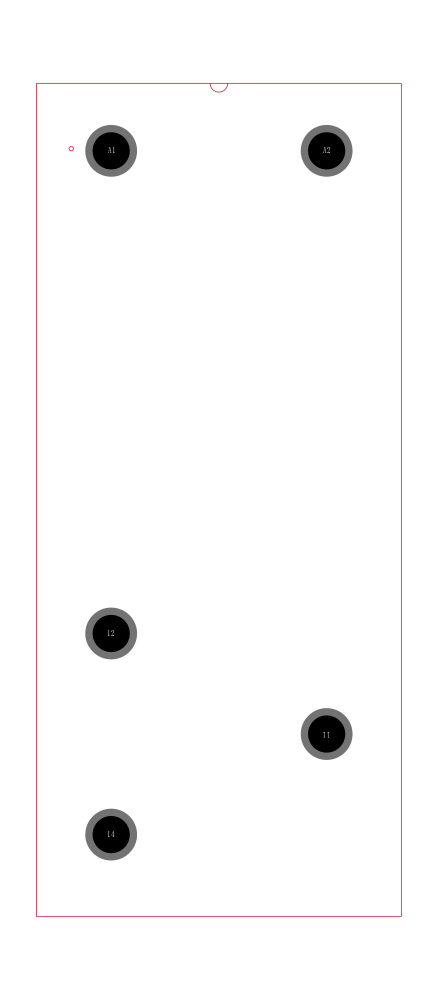

安装方式 Through Hole
引脚数 5
高度 15.7 mm
触点材质 Silver Nickel
重量 14 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
