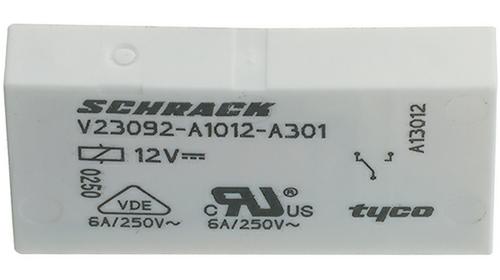

Electromechanical Relay SPST-NO 10A 12VDC 848Ω Through Hole
Electromechanical Relay SPST-NO 10A 12VDC 848Ohm Through Hole
Product Highlights
Relay Type = Slim PCB Relay
Relay Style = PCB
SNR Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 6 A
艾睿:
Electromechanical Relay 12VDC 848Ohm 10A SPST-NO 28x5x15mm THT Slim PCB Relay
Verical:
Electromechanical Relay 12VDC 848Ohm 10A SPST-NO 28x5x15mm THT Slim PCB Relay
MASTER:
Electromechanical Relay SPST-NO 10A 12VDC 848Ohm Through Hole
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay SPST-NO 10A 12VDC 848Ohm Through Hole
Electro Sonic:
Electromechanical Relay SPST-NO 10A 12VDC 848Ohm Through Hole
额定电压AC 400 V
输入电压DC 12.0 V
触点类型 SPST-NO
跌落电压 600 mV
触点额定电流 10 A
线圈电压 12.0 V
线圈电流 14.15 mA
线圈功率DC 170 mW
线圈电阻 848 Ω
载流 6.00 A
额定电流Max 10 A
线圈电压DC 12 V
额定功率Max 1.5 KVA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 4
封装 SIP
高度 15 mm
封装 SIP
触点材质 Silver Tin Oxide
重量 6.00 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
