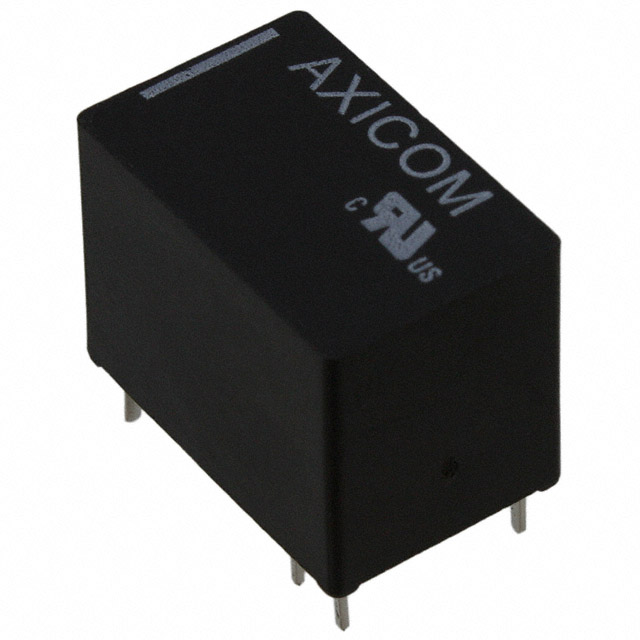

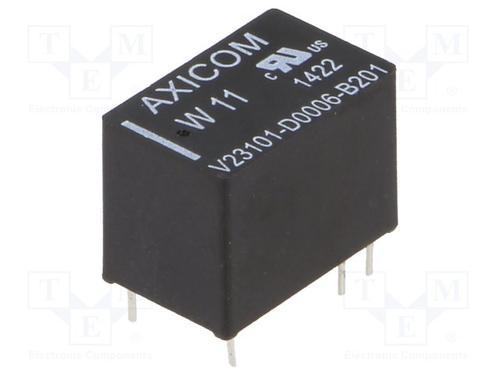

Electromechanical Relay SPDT 1A 12VDC 320Ω Through Hole
V23101D 6B201
Product Highlights
V23101 / W11 Relay Series
DC Actuating System
Input Voltage = 12 VDC
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 1 Amps.
艾睿:
Signal Relay 12VDC 1.25A SPDT 15.4mm 10mm 11.5mm THT
安富利:
Electromechanical Relay SPDT 1A 12VDC 320Ohm Through Hole
TME:
Relay: electromagnetic; SPDT; Ucoil:12VDC; Icontacts max:1.25A
Verical:
Electromechanical Relay 12VDC 320Ohm 1.25A SPDT 15.4x10x11.5mm THT Signal Relay
MASTER:
V23101D 6B201
Powell:
Small Signal Relays
Online Components:
V23101D 6B201
Electro Sonic:
V23101D 6B201
额定电压DC 120 V
额定电压AC 125 V
触点额定电流 1 A
线圈电压 12 VDC
线圈电流 37.5 mA
线圈电阻 320 Ω
额定电流Max 1.25 A
线圈电压DC 12 V
额定功率Max 30W, 62.5VA
开关电流Max 1.25 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压DC Max 120 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 6
封装 DIP
高度 11.5 mm
封装 DIP
重量 4 g
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
