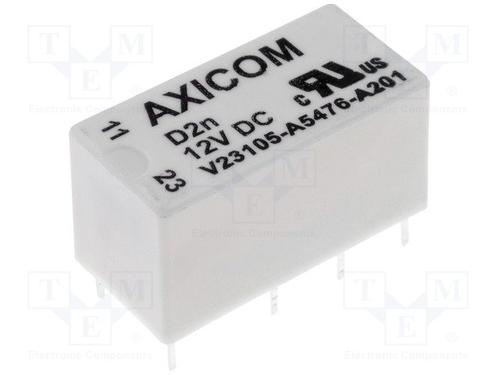

Signal Relay 12VDC 3A DPDT 20.2mm 10mm 11mm Through Hole
V23105A5476A201
Product Highlights
V23105 / D2n Relay Series
DC Actuating System
Input Voltage = 12 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 3 A
艾睿:
Signal Relay 12VDC 3A DPDT 20.2mm 10mm 11mm THT
安富利:
Electromechanical Relay DPDT 3A 12VDC 280Ohm Through Hole
TME:
Relay: electromagnetic; DPDT; Ucoil:12VDC; 0.5A/125VAC; 1A/30VDC
Verical:
Electromechanical Relay 12VDC 280Ohm 3A DPDT 20.2x10x11mm THT Signal Relay
MASTER:
D2n-Relay
Powell:
2G COM Relay
Online Components:
V23105A5476A201
Electro Sonic:
V23105A5476A201
额定电压DC 220 V
额定电压AC 250 V
接触电阻 100 mΩ
触点额定电流 3 A
线圈电压 12 VDC
线圈电流 27 mA
线圈电阻 280 Ω
额定电流Max 3 A
线圈电压DC 12 V
额定功率Max 60W, 125VA
开关电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max <100 mΩ
安装方式 Through Hole
引脚数 8
封装 DIP
高度 11 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -25℃ ~ 75℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
