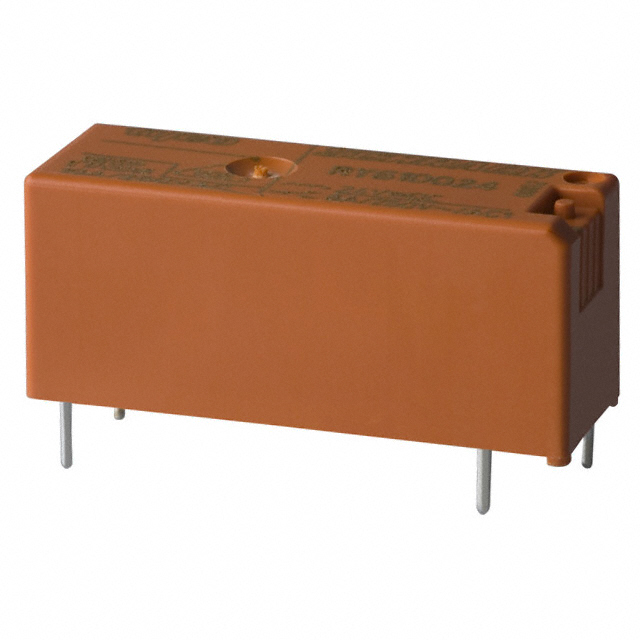

Electromechanical Relay 12VDC 627Ω 8A SPST-NO 28.5mm 10.1mm 12.3mm THT Power Relay
Electromechanical Relay 12VDC 627Ohm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Product Highlights
RYII Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RYA30012
艾睿:
Power Relay 12VDC 8A SPST-NO28.5mm 10.1mm 12.3mm THT
Verical:
Electromechanical Relay 12VDC 627Ohm 8A SPST-NO 28.5mm 10.1mm 12.3mm THT Power Relay
MASTER:
Electromechanical Relay 12VDC 627Ohm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay 12VDC 627Ohm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Electro Sonic:
Electromechanical Relay 12VDC 627Ohm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
额定电压AC 400 V
触点额定电流 8 A
线圈电压 12 VDC
线圈电流 19.14 mA
线圈电阻 627 Ω
额定电流Max 8 A
线圈电压DC 12 V
线圈功率 230 mW
额定功率Max 2 kVA
开关电流Max 8 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 4
高度 12.3 mm
触点材质 Silver Cadmium Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
