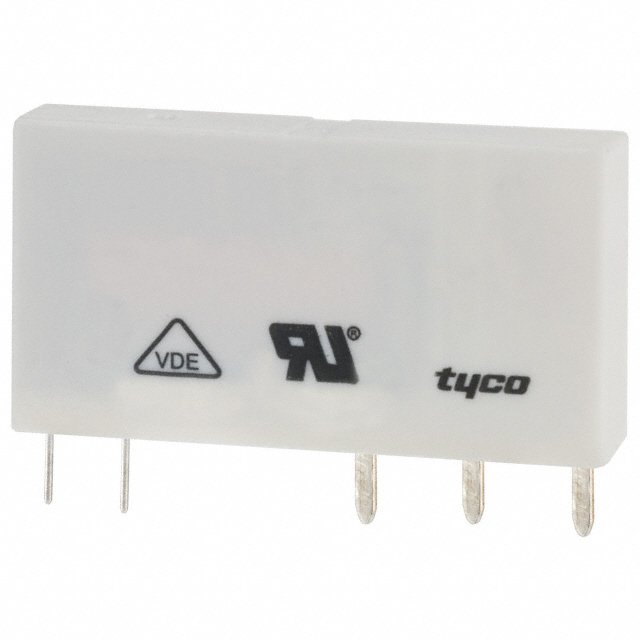

Electromechanical Relay 12VDC 848Ω 10A SPDT 28mm 5mm 15mm THT Slim PCB Relay
V23092A1012A801
Product Highlights
SNR Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 6 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 6A 12V
艾睿:
Electromechanical Relay 12VDC 848Ohm 10A SPDT 28mm 5mm 15mm THT Slim PCB Relay
Chip1Stop:
Electromechanical Relay 12VDC 848Ohm 10A SPDT 28x5x15mm THT Slim PCB Relay
Verical:
Electromechanical Relay 12VDC 848Ohm 10A SPDT 28mm 5mm 15mm THT Slim PCB Relay
MASTER:
V23092A1012A801
Powell:
Industrial Relays General Purpose
Online Components:
V23092A1012A801
AMEYA360:
RELAY GEN PURPOSE SPDT 6A 12V
Electro Sonic:
V23092A1012A801
Win Source:
V23092A1012A801 /
额定电压AC 400 V
输入电压DC 12.0 V
功耗 170 mW
跌落电压 600 mV
触点额定电流 6 A
线圈电压 12 VDC
线圈电流 14.15 mA
线圈功率DC 170 mW
线圈电阻 848 Ω
额定电流Max 10 A
线圈电压DC 12 V
额定功率Max 1.5 KVA
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
封装 SIP
长度 28 mm
宽度 5 mm
高度 15 mm
封装 SIP
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
