108-1763-101

香蕉插头, 15A, 焊接, 黑色

Insulated Hex Body Solder Stud, Current Rating 15 A, Voltage Rating 3500 Vrms Min.

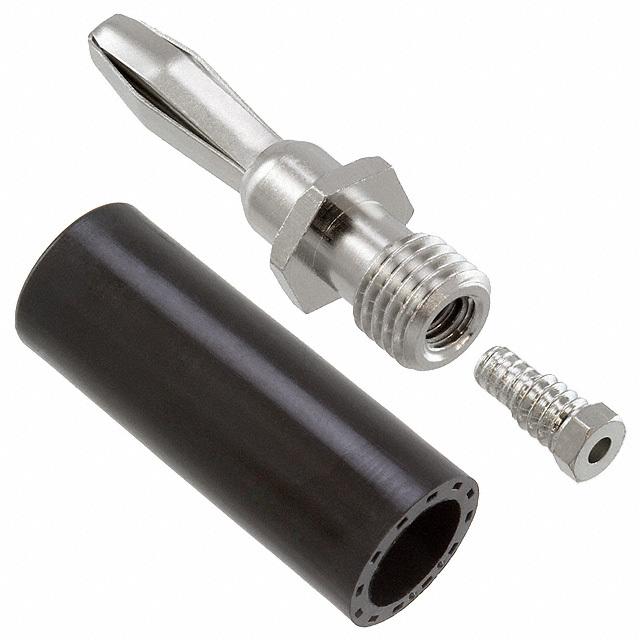

** Banana Plug, Insulated Hex Body Solder Stud, 15 A, Black, Brass, Nickel Silver, 3500 V RMS Min.

* For standard banana jacks of 0.166"" ID.

* Wire can be soldered to threaded-stud or flared and held by stud for solderless connection.

* Accept up to 16-gauge wire.

* Nylon insulated handle is UL approved for self extinguishing.

* Plug is nickel-plated brass with nickel silver spring.

* Current Rating: 15 amps. Breakdown Voltage: 3500 V RMS minimum.

* Contact Resistance: 0.010 ohms maximum.

Application: Test equipment, power supplies.

**
