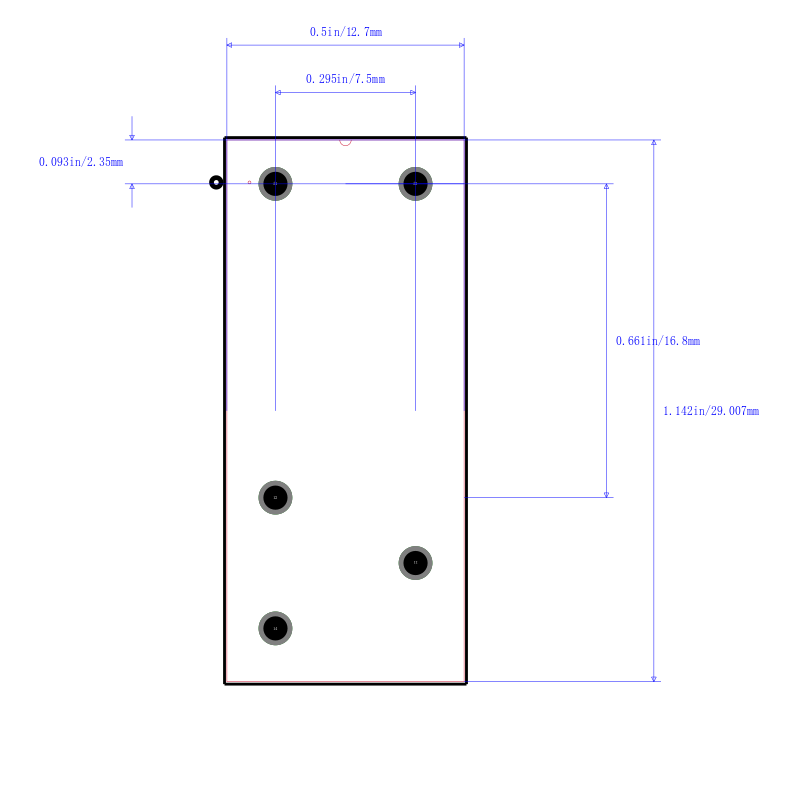

Electromechanical Relay 12VDC 360Ω 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
1 pole 12A/16A, 1 form C CO or 1 form A NO contact
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient temperature 85°C DC coil
WG version: product in accordance to IEC 60335-1
Reflow version: for THR Through-Hole Reflow soldering process
得捷:
RT114012
立创商城:
1419108-1
安富利:
Electromechanical Relay SPDT 12A 12VDC 360Ohm Through Hole
Chip1Stop:
Electromechanical Relay 12VDC 360Ohm 12A SPDT 29x12.7x15.7mm THT Power Relay
Verical:
Electromechanical Relay 12VDC 360Ohm 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
MASTER:
RT114012
Powell:
Reinforced PCB Relays up to 16A
Online Components:
RT114012
Electro Sonic:
RT114012
额定电压AC 400 V
额定电流 12.0 A
输入电压DC 12.0 V

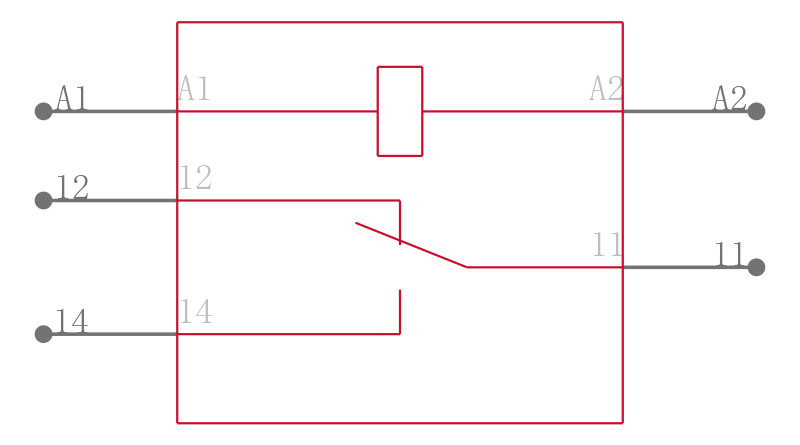

触点类型 SPDT
跌落电压 1.20 V
触点额定电流 12 A
线圈电压 12.0 V
线圈电流 33.3 mA
线圈功率DC 400 mW
线圈电阻 360 Ω
额定电流Max 12 A
线圈电压DC 12 V
额定功率Max 3 kVA
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
封装 -
高度 15.7 mm
封装 -
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Carton
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
