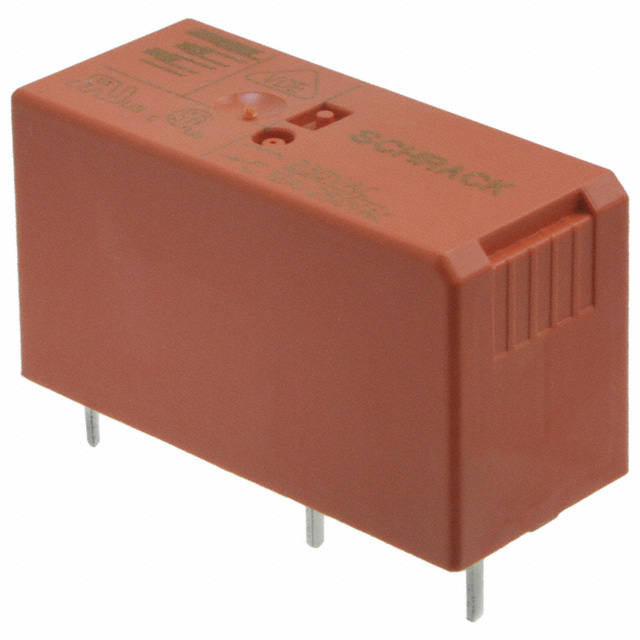

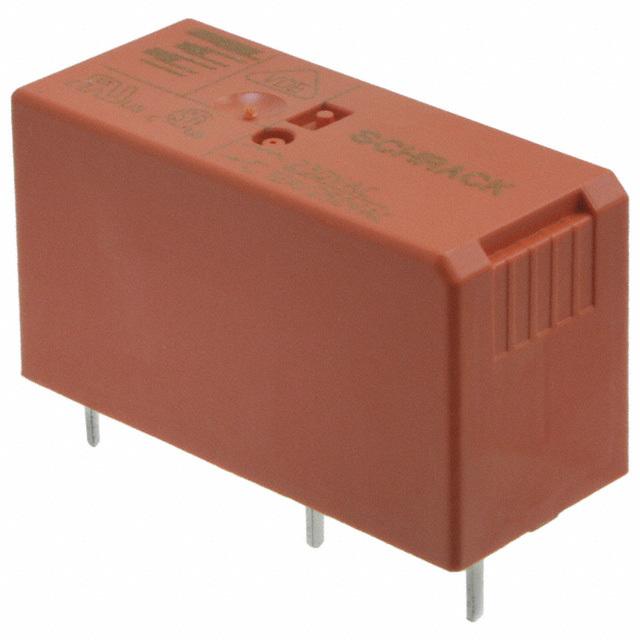

Electromechanical Relay 230VAC 32.5KΩ 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
The Power PCB Relay RT1 series PCB General Purpose Power Relay with 1-pole 12/16A, 1-form-C CO or 1-form-A NO contacts.
- .
- DC or AC coils
- .
- WG version in accordance to IEC 60335-1
- .
- Reflow version for THR Through-Hole Reflow soldering process
- .
- 5kV/10mm Coil-contact, reinforced insulation
得捷:
RT214730
艾睿:
Power Relay 230VAC 12A SPDT29mm 12.7mm 15.7mm THT
TME:
Relay: electromagnetic; SPDT; Ucoil:230VAC; 12A/250VAC; 12A/24VDC
Verical:
Electromechanical Relay 230VAC 32.5KOhm 12A SPDT 29mm 12.7mm 15.7mm THT Power Relay
MASTER:
RT214730
Powell:
Reinforced PCB Relays up to 16A
Online Components:
RT214730
Electro Sonic:
RT214730
额定电压AC 400 V
触点类型 SPDT
触点额定电流 12 A
线圈电压 230 VAC
线圈电流 7.08 mA
线圈电压AC 230 V
线圈电阻 32.5 kΩ
额定电流Max 12 A
额定功率Max 3 kVA
开关电流Max 12 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
高度 15.7 mm
触点材质 Silver Nickel
重量 14 g
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Carton
制造应用 Industrial, Thermal Management, Clock & Timing, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536410050
