1110-561K-RC

非常高的电流容量 Very high current capacity

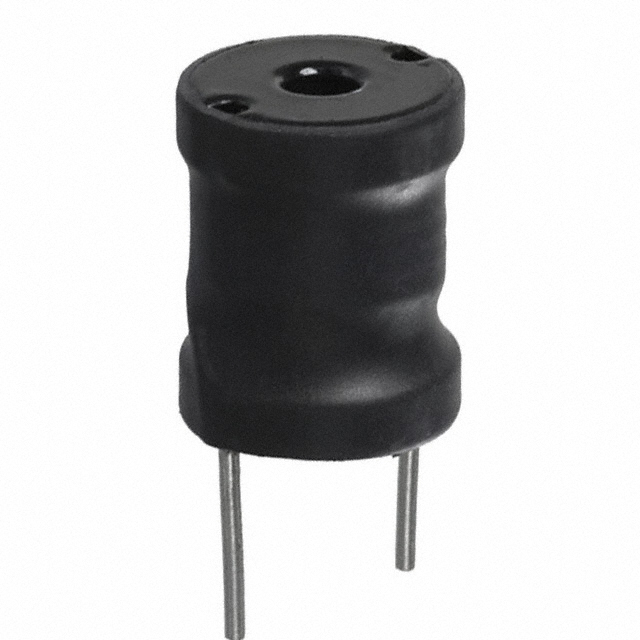

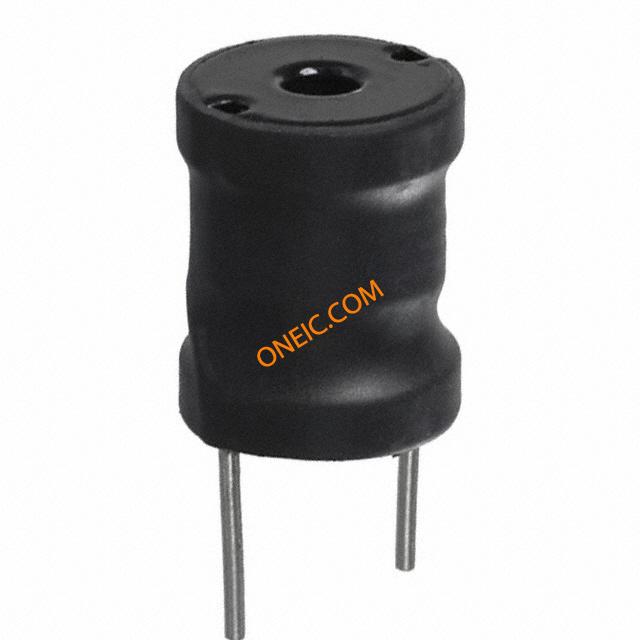

560µH Unshielded Wirewound Inductor 800mA 696mOhm Max Radial, Vertical Cylinder

得捷:
FIXED IND 560UH 800MA 696MOHM TH

立创商城:
560uH ±10% 800mA 696mΩ

艾睿:

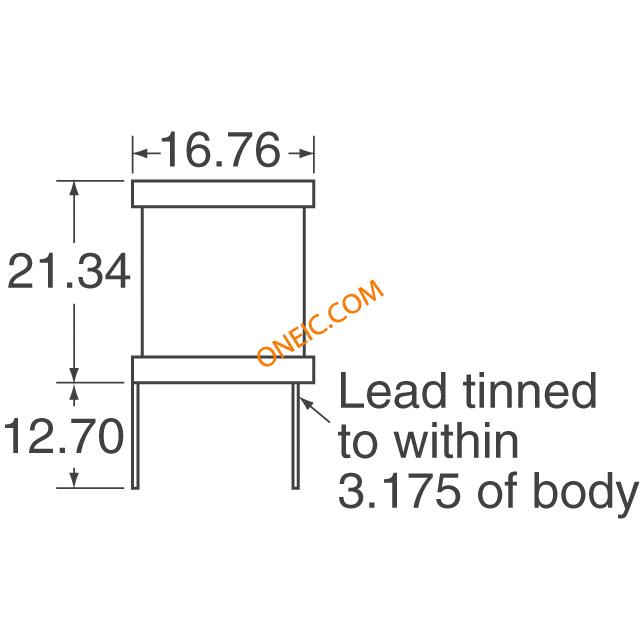

This high current rf choke 1110-561K-RC leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 11.94 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 21.34 mm tall with a diameter of 16.76 mm. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 800m A with a maximum resistance of 696m Ohm. This device utilizes bobbin core technology. Its test frequency is 1K Hz. It has an inductance of 560u H.

Chip1Stop:
Ind High Current RF Choke Bobbin Core 560uH 10% 1KHz Ferrite 800mA RDL

Newark:
# BOURNS JW MILLER  1110-561K-RC  Choke, High Current, 1110 Series, 560 µH, 800 mA, 800 mA, 0.696 ohm, ± 10%

MASTER:
High Current RF Choke Bobbin Core 560uH 10% 1KHz Ferrite 800mA 696mOhm DCR RDL

Electro Sonic:
High Current RF Choke Bobbin Core 560uH 10% 1KHz Ferrite 800mA 696mOhm DCR RDL
