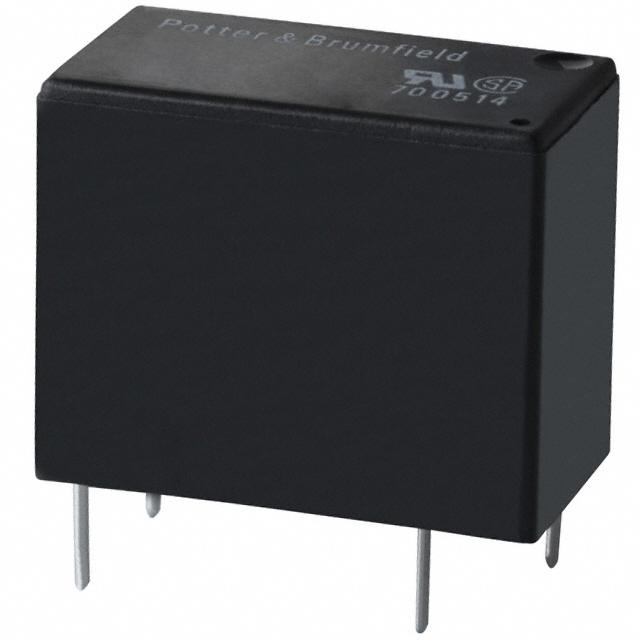

继电器
T77V1D10-12
Product Highlights
T77 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 10 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
继电器
得捷:
T77V1D10-12
艾睿:
Electromechanical Relay 12VDC 320Ohm 10A SPST-NO 18.2x10.2x14.7mm THT Miniature PCB Relay
安富利:
Electromechanical Relay SPST-NO 10A 12VDC 320Ohm Through Hole
Verical:
Electromechanical Relay 12VDC 320Ohm 10A SPST-NO 18.2mm 10.2mm 14.7mm THT Miniature PCB Relay
MASTER:
General Purpose Relay - T77 Series - Power - Non Latching - SPST-NO - 12 VDC - 10 A.
Powell:
Miniature PCB Relays
Online Components:
T77V1D10-12
Electro Sonic:
General Purpose Relay - T77 Series - Power - Non Latching - SPST-NO - 12 VDC - 10 A.
额定电压DC 30 V
额定电压AC 250 V
额定电流 10.0 A
额定功率 450 mW
输入电压DC 12.0 V
触点类型 SPST-NO
电阻 320 Ω
功耗 450 mW
触点额定电流 10 A
线圈电压 12 VDC
线圈电流 37.5 mA
线圈功率DC 450 mW
线圈电阻 320 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 12 V
线圈功率 450 mW
开关电流Max 10 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 30 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 4
封装 DIP-4
长度 18.2 mm
宽度 10.0 mm
高度 14.7 mm
封装 DIP-4
触点材质 Silver Cadmium Oxide
工作温度 -30℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
