非常高的电流容量 Very high current capacity

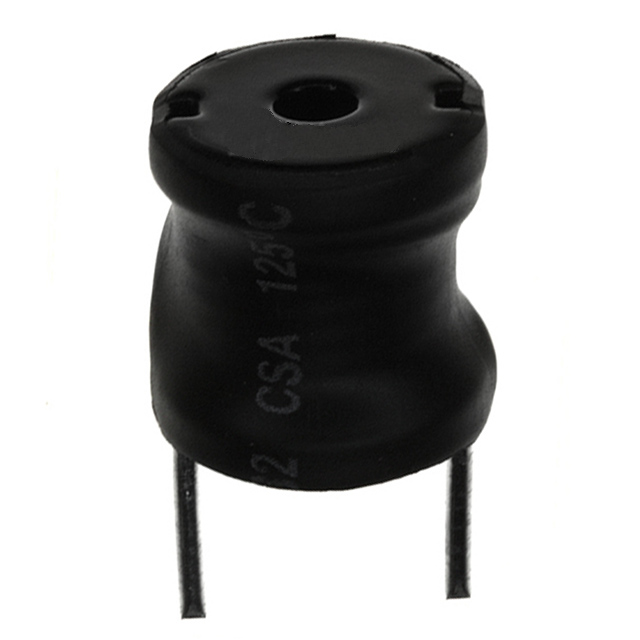

This high current rf choke leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 16 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 20%. This product is 21.34 mm tall with a diameter of 20.57 mm. This leaded inductor has a maximum DC current of 11.4 A with a maximum resistance of 5m Ohm. Its test frequency is 1K Hz. It has an inductance of 4.7u H. This device utilizes bobbin core technology.
额定电流 11.4 A
容差 ±20 %
电感 4.7 µH
屏蔽 No
测试频率 1 kHz
电阻DC） ≤5 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 5 mΩ
安装方式 Through Hole
引脚数 2

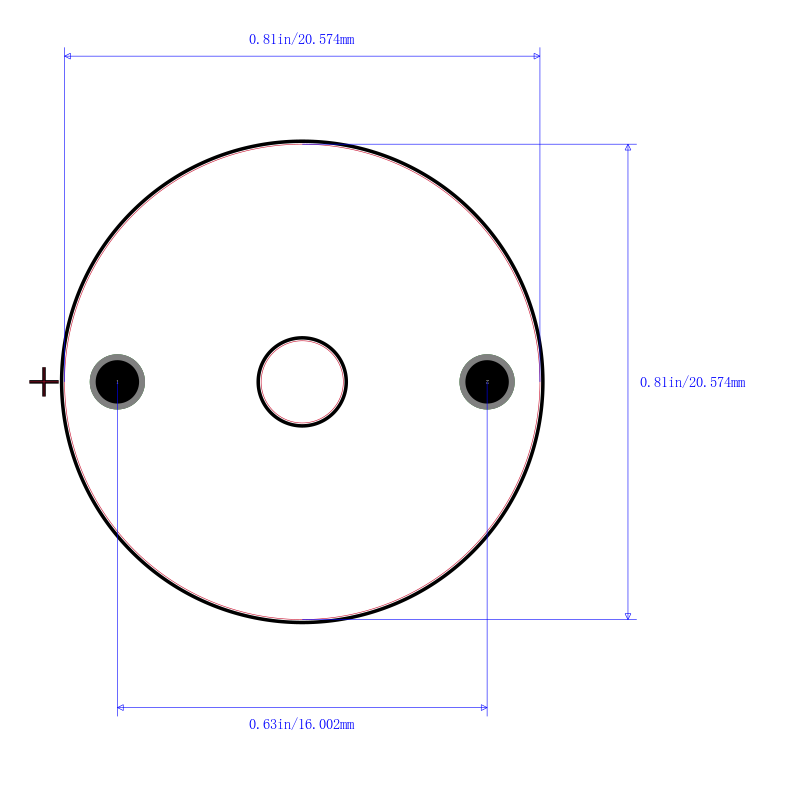

封装 Radial

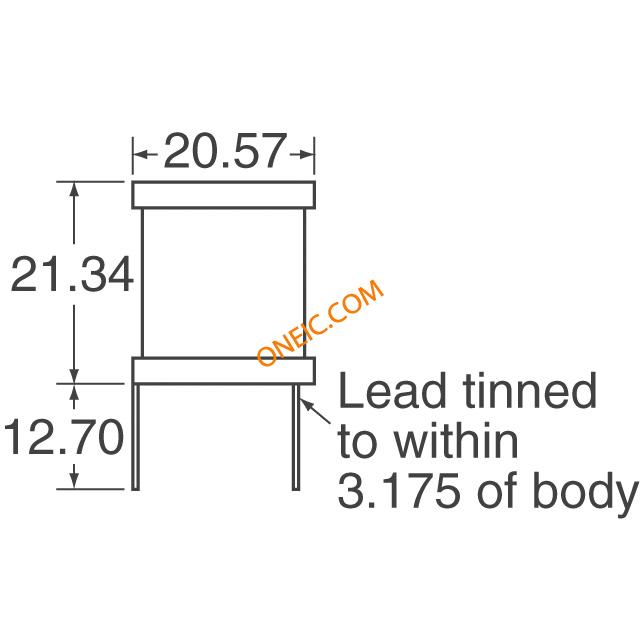

高度 21.34 mm
直径 20.6 mm
脚长度 12.7 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1120-4R7M-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
1120-4R7M 伯恩斯 | 类似代替 | 1120-4R7M-RC和1120-4R7M的区别 |
