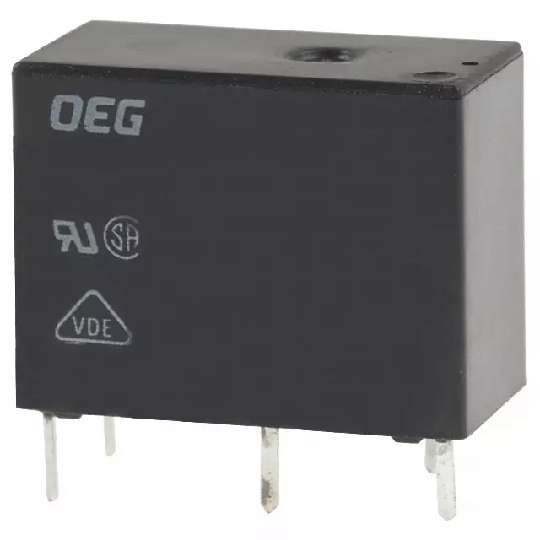

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.033A COIL, 12VDC COIL, 400mW COIL, 5A CONTACT, 277VDC CONTACT, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
PCH-112D2,000
Product Highlights
PCH Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
艾睿:
Electromechanical Relay 12VDC 360Ohm 5A SPDT 20mm 10mm 15.2mm THT Industrial Relay
安富利:
Electromechanical Relay SPDT 5A 12VDC 360Ohm Through Hole
Chip1Stop:
Electromechanical Relay 12VDC 360Ohm 5A SPDT 20mm 10mm 15.2mm THT Industrial Relay
Verical:
Electromechanical Relay 12VDC 360Ohm 5A SPDT 20mm 10mm 15.2mm THT Industrial Relay
MASTER:
PCH SPEC,000 CUSTOMER DRAWING
Powell:
Industrial Relays General Purpose
Online Components:
PCH-112D2,000
AMEYA360:
RELAY GEN PURPOSE SPDT 5A 12V
输入电压DC 12.0 V
触点额定电流 5 A
线圈电压 12 VDC
线圈电流 33.3 mA
线圈功率DC 400 mW
线圈电阻 360 Ω
线圈电压DC 12 V
线圈功率 400 mW
开关电流Max 10 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 30 V
额定电压AC Max 277 V
安装方式 Through Hole
长度 20 mm
宽度 10 mm
高度 15.2 mm
触点材质 Silver Tin Oxide
重量 7 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536490080
