1703 SL002

多芯电缆 24AWG 1C SHIELDED 500ft SPOOL SLATE

Braid Shield, Stranded Tinned Copper , Polyethylene Insulation, Multiconductor

.

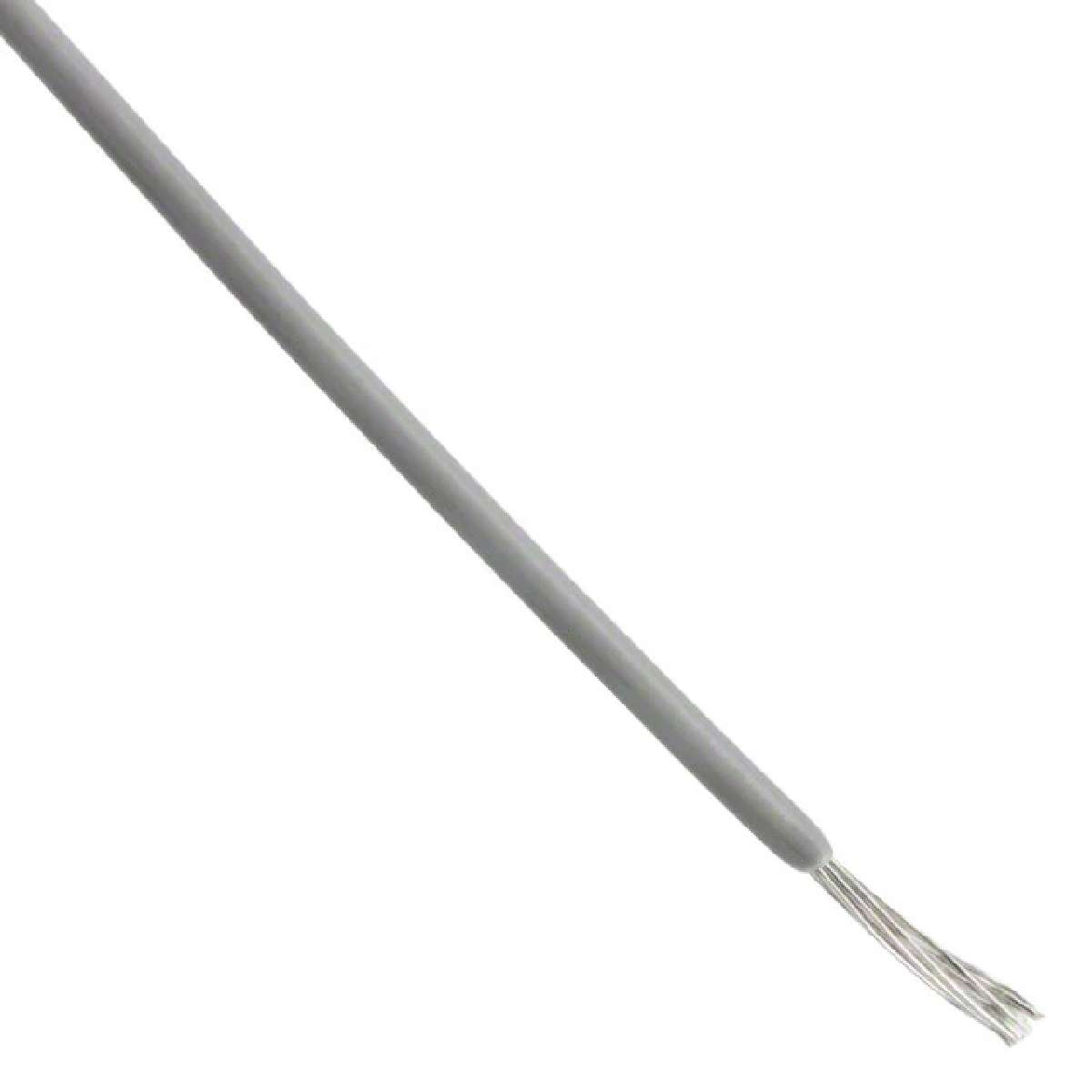

* Type 1703.** Stranded tinned copper conductor. White polyethylene insulation. Braided tinned copper shield. Gray-polyvinylchloride jacket. ** Suggested Working Voltage:** 3500 V. Type 1703 is for high impedance microphones. ** Type 1710.** Stranded tinned copper conductor. Color-coded polyethylene insulation; Conductor 1 — White; Conductor 2 — Black. Cabled with fillers. Wrap over conductors. Braided tinned copper shield. Black polyvinylchloride jacket. ** Suggested Working Voltage:** 1000 V. Type 1710 is for low impedance applications.

Braided shield tinned copper or spiral wrapped tinned copper 90% coverage
