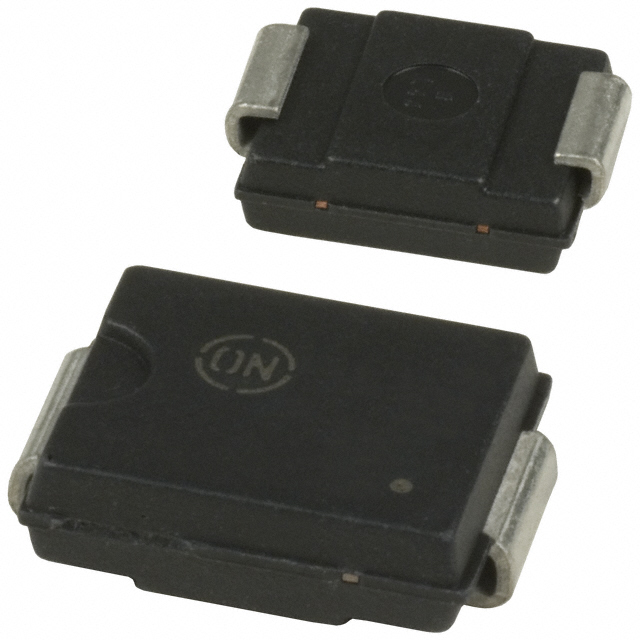

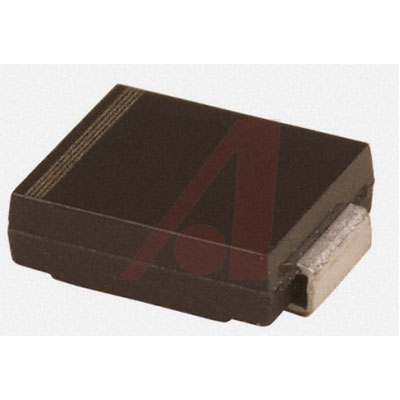

ON SEMICONDUCTOR 1.5SMC33AT3G TVS二极管, TVS, 1.5SMC系列, 单向, 28.2 V, 45.7 V, DO-214AB, 2 引脚
The 1.5SMC series Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.
- .
- 5.8 to 77.8V Working peak reverse voltage range
- .
- 6.8 to 91V Standard Zener breakdown voltage range
- .
- 1500W @ 1ms Peak power
- .
- ESD rating of Class 3 >16kV per human body model
- .
- Maximum clamp voltage @ peak pulse current
- .
- <5µA above 10V Low leakage current
- .
- <1ns Response time
- .
- Maximum temperature coefficient specified
- .
- -65 to 150°C Operating temperature range
额定电压DC 33.0 V
工作电压 28.2 V
额定功率 1.50 kW
无卤素状态 Halogen Free
击穿电压 31.4 V
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 45.7 V
最大反向电压（Vrrm） 28.2V
测试电流 1 mA
最大反向击穿电压 34.7 V
脉冲峰值功率 1500 W
最小反向击穿电压 31.4 V
击穿电压 31.4 V
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMC
长度 7.11 mm
宽度 6.1 mm
高度 2.41 mm
封装 SMC
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 汽车级, Communications & Networking, Industrial, Automation & Process Control, Medical, Automotive, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC33AT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SM15T33A 意法半导体 | 功能相似 | 1.5SMC33AT3G和SM15T33A的区别 |
SMCJ28A 伯恩斯 | 功能相似 | 1.5SMC33AT3G和SMCJ28A的区别 |
SMCJ30A 伯恩斯 | 功能相似 | 1.5SMC33AT3G和SMCJ30A的区别 |
