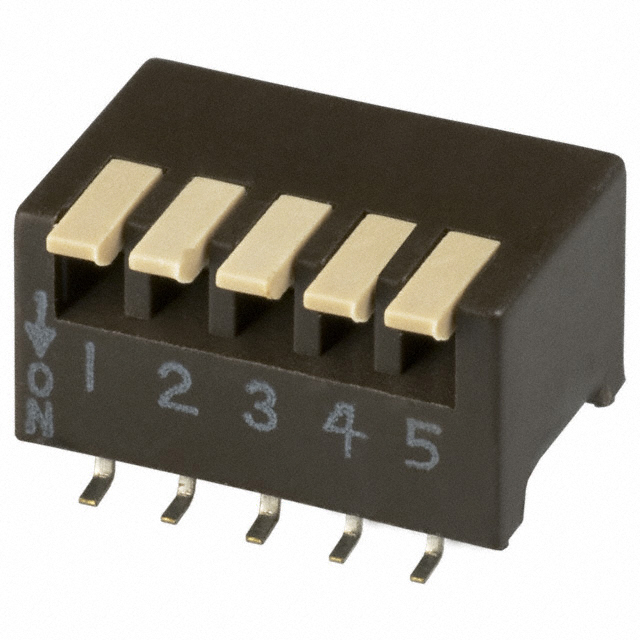

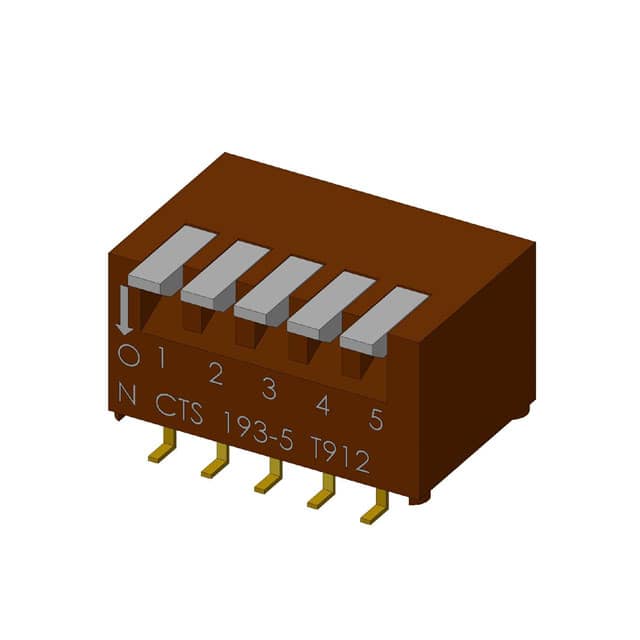

193-5MS

侧面触动，通孔DIP开关 Side Actuated, Through Hole DIP Switches

DIP SPST 位置 表面贴装，直角 Piano 触动器 50mA 24VDC

得捷:
SWITCH PIANO DIP SPST 50MA 24V

艾睿:

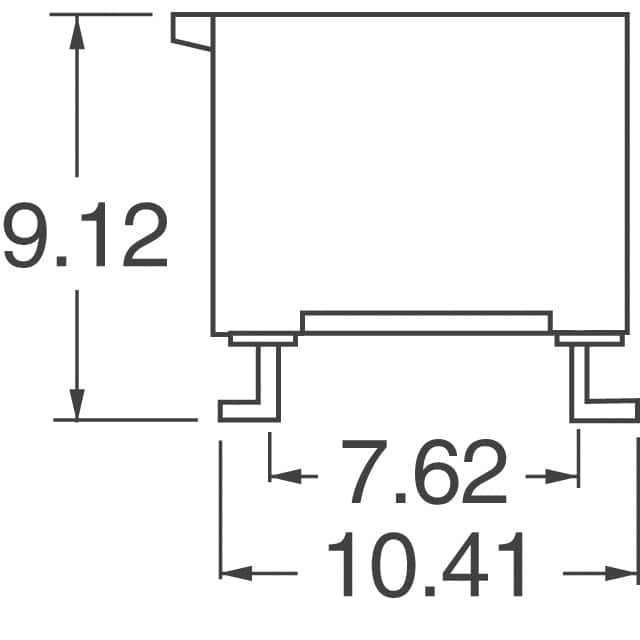

Does your printed circuit board need some type of electronic flow control? The 193-5MS dual in-line package switch, developed by CTS, is the component you need. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 193-5MS DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product is 14.88 mm long, 9.12 mm tall and 11.23 mm deep. This product&s;s terminal pitch is 2.54 mm.

Chip1Stop:
Switch DIP OFF ON SPST 5 Piano 0.05A 24VDC Gull Wing 2.54mm SMD Tube

Verical:
Switch DIP OFF ON SPST 5 Piano 0.05A 24VDC Gull Wing 7000Cycles 2.54mm SMD Tube

MASTER:
Switch DIP OFF ON SPST 5 Piano 0.05A 24VDC Gull Wing 2.54mm SMD Tube
