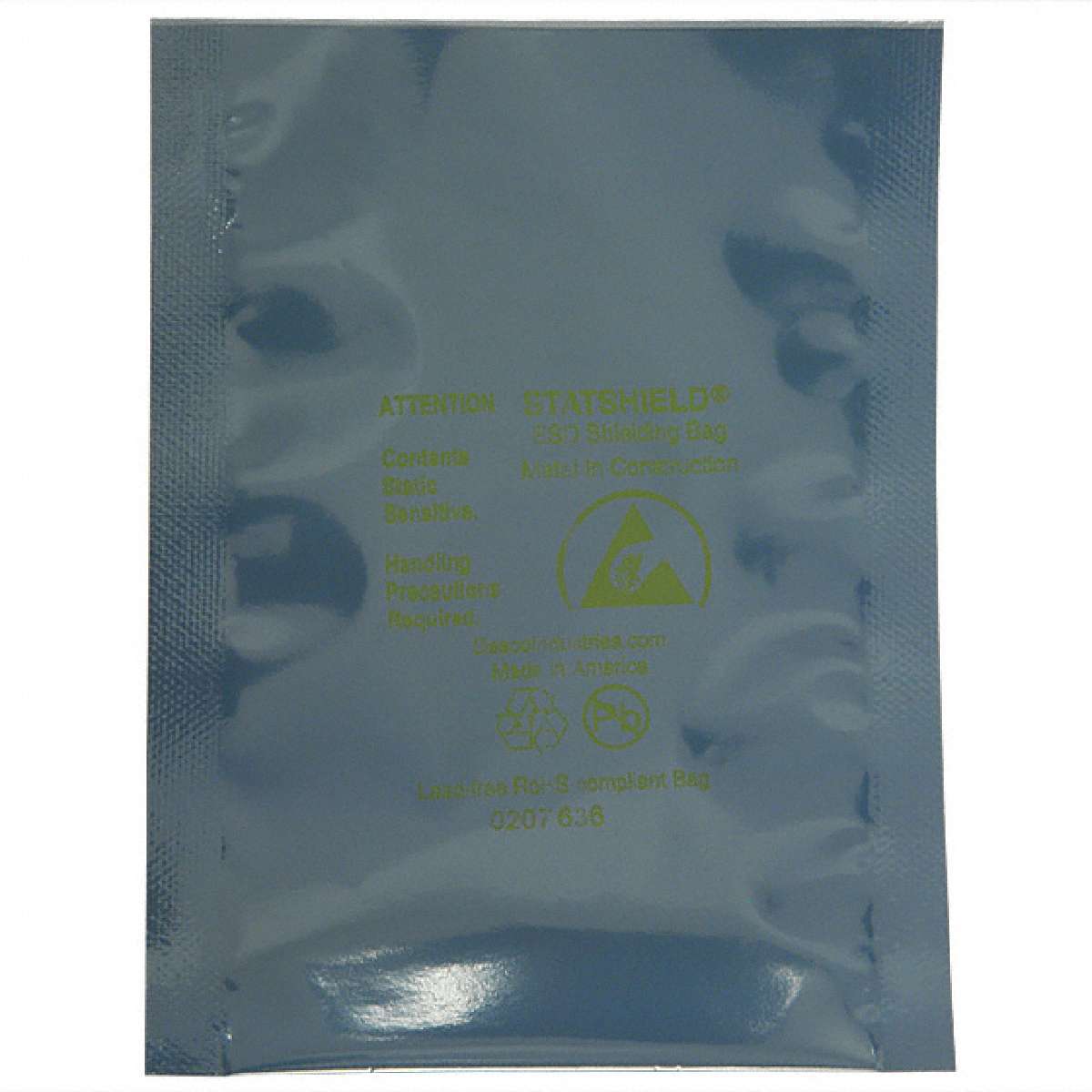

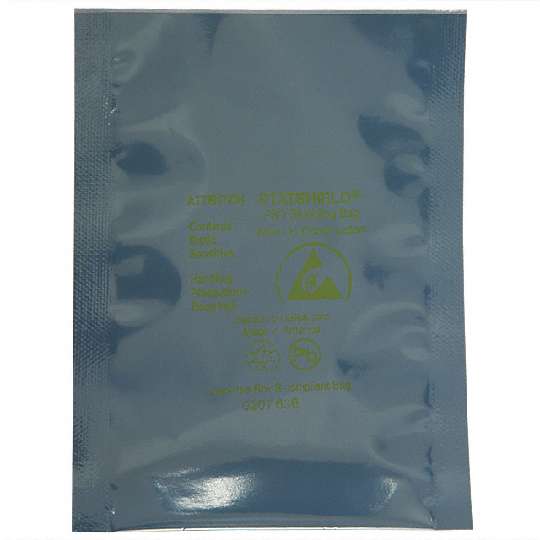

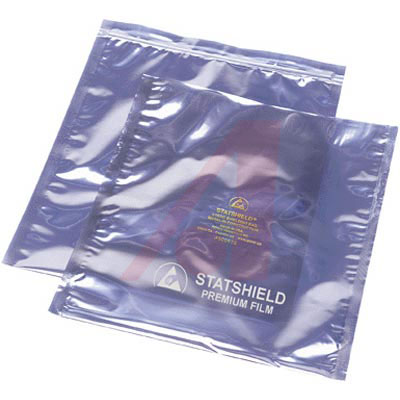

Bag, ESD Shield; Bag; 4in.; 24; 10^11Ω Max. Outer Surface; 3 mil
10^2 Ohms Max. Metal Layer Resistance, STATSHIELD® Transparent Metal in Standard ESD Shielding Bag
These metal in bags have a buried metal layer that won"t scratch off and provides superior durability. With greater than 10 lbs. puncture resistance, the bags will reliably protect most components. These bags have greater than 40% light transmission, which allows for identification of bag contents. Static dissipative properties are built into the bags, which won"t wear off and are not humidity dependent.
Shielding as produced with thin conductive ESD protective materials tends to spread or reduce the electrostatic field inside the container due to external electrostatic fields or discharges to the surface. Some designs of shielding materials, such as those incorporating a dielectric layer within the system, also may limit electrical current from penetrating the surface during a direct discharge. These types of products would be classified as discharge shielding materials.
