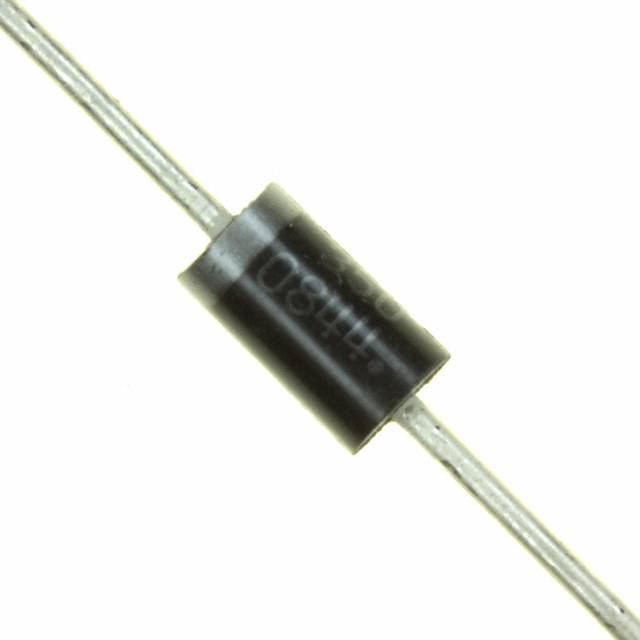

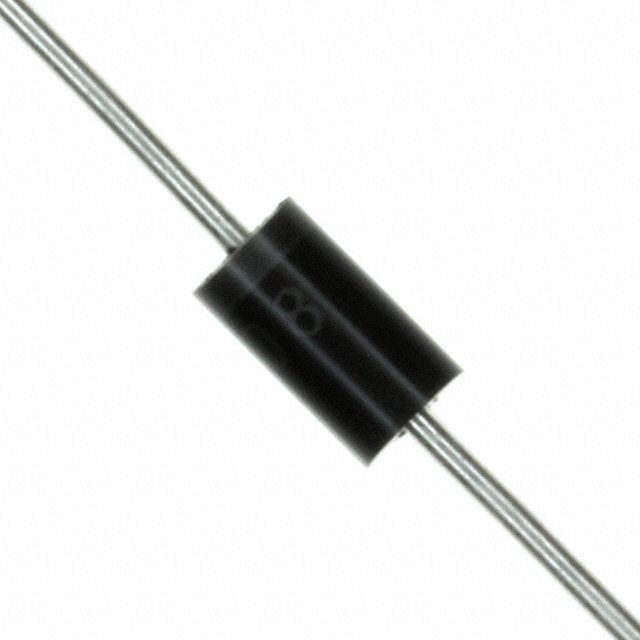

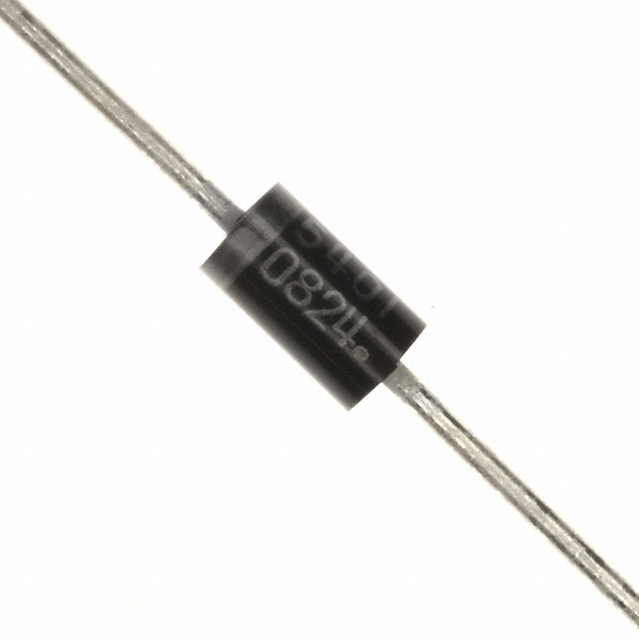

ON SEMICONDUCTOR 1N5401RLG 标准恢复二极管, 单, 100 V, 3 A, 1 V, 200 A 新
整流器,2A 至 3A,
### 标准
带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
欧时:
### 整流器二极管,2A 至 3A,ON Semiconductor### 标准带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。### 二极管和整流器,ON Semiconductor
得捷:
DIODE GEN PURP 100V 3A AXIAL
立创商城:
标准恢复整流器,100 V,3.0 A
贸泽:
Rectifiers 100V 3A Standard
e络盟:
标准恢复二极管, 100 V, 3 A, 单, 1 V, 200 A
艾睿:
Converting from AC to DC is simple when using a switching diode 1N5401RLG rectifier from ON Semiconductor. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 3 A. It is made in a single configuration.
Allied Electronics:
ON Semi 1N5401RLG; Diode; 100V 3A; 2-Pin DO-41
安富利:
Diode Switching 100V 3A 2-Pin Case 267-05 T/R
Chip1Stop:
Diode Switching 100V 3A 2-Pin Case 267-05 T/R
TME:
Diode: rectifying; THT; 100V; 3A; Package: reel, tape; DO27
Verical:
Rectifier Diode Switching 100V 3A 2-Pin DO-201AD T/R
Newark:
# ON SEMICONDUCTOR 1N5401RLG Standard Recovery Diode, 100 V, 3 A, Single, 1 V, 200 A
罗切斯特:
Diode Switching 100V 3A 2-Pin Case 267-05 T/R
Win Source:
DIODE GEN PURP 100V 3A AXIAL
额定电压DC 100 V
额定电流 3.00 A
无卤素状态 Halogen Free
输出电流 ≤3.00 A
针脚数 2
正向电压 1 V
极性 Standard
热阻 53℃/W RθJA
正向电流 3 A
最大正向浪涌电流(Ifsm) 200 A
正向电压Max 1 V
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 9.5 mm
封装 DO-201AD
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5401RLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5401G 安森美 | 类似代替 | 1N5401RLG和1N5401G的区别 |
1N5401RL 安森美 | 类似代替 | 1N5401RLG和1N5401RL的区别 |
1N5401 安森美 | 类似代替 | 1N5401RLG和1N5401的区别 |
