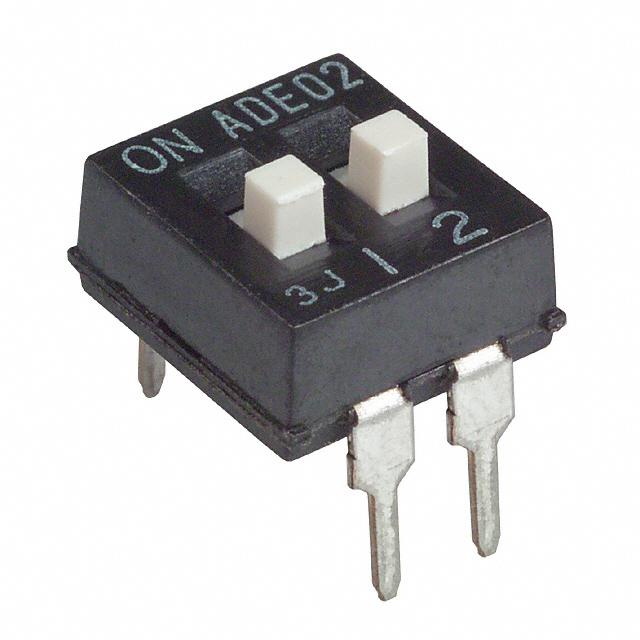

1825057-1

2 位置 单刀单掷 凸出式 滑动 未密封 2.54 mm 间距 通孔 DIP 开关

ADE0204=DIP SWITCH,EXT,THRU/HL

Product Highlights

DIP Switch

PCB Mount Style = Through Hole

Single Pole - Single Throw Configuration Pole-Throw

Actuator Style = Extended, Slide

Not Sealed

立创商城:
拨码开关 2位 脚距2.54mm

艾睿:
Use TE Connectivity&s;s 1825057-1 dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 24VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1825057-1 DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 7.06 mm long, 5.8 mm tall and 8.35 mm deep. The maximum DC voltage rating is 24 VDC.

Chip1Stop:
Switch DIP OFF ON SPST 2 Raised Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 2 Extended Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

MASTER:
DIP / SIP Switch - 2 Circuits - Slide - Through Hole - SPST - 24 VDC - 100 mA.

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Online Components:
ADE0204=DIP SWITCH,EXT,THRU/HL

Electro Sonic:
DIP / SIP Switch - 2 Circuits - Slide - Through Hole - SPST - 24 VDC - 100 mA.
