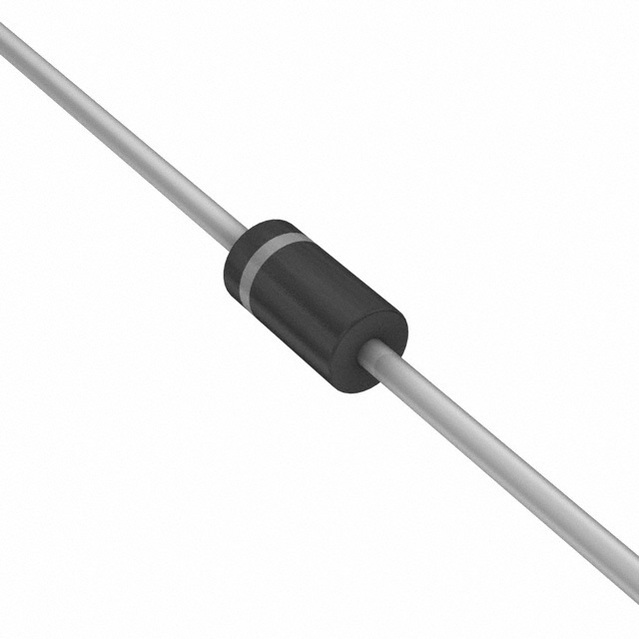

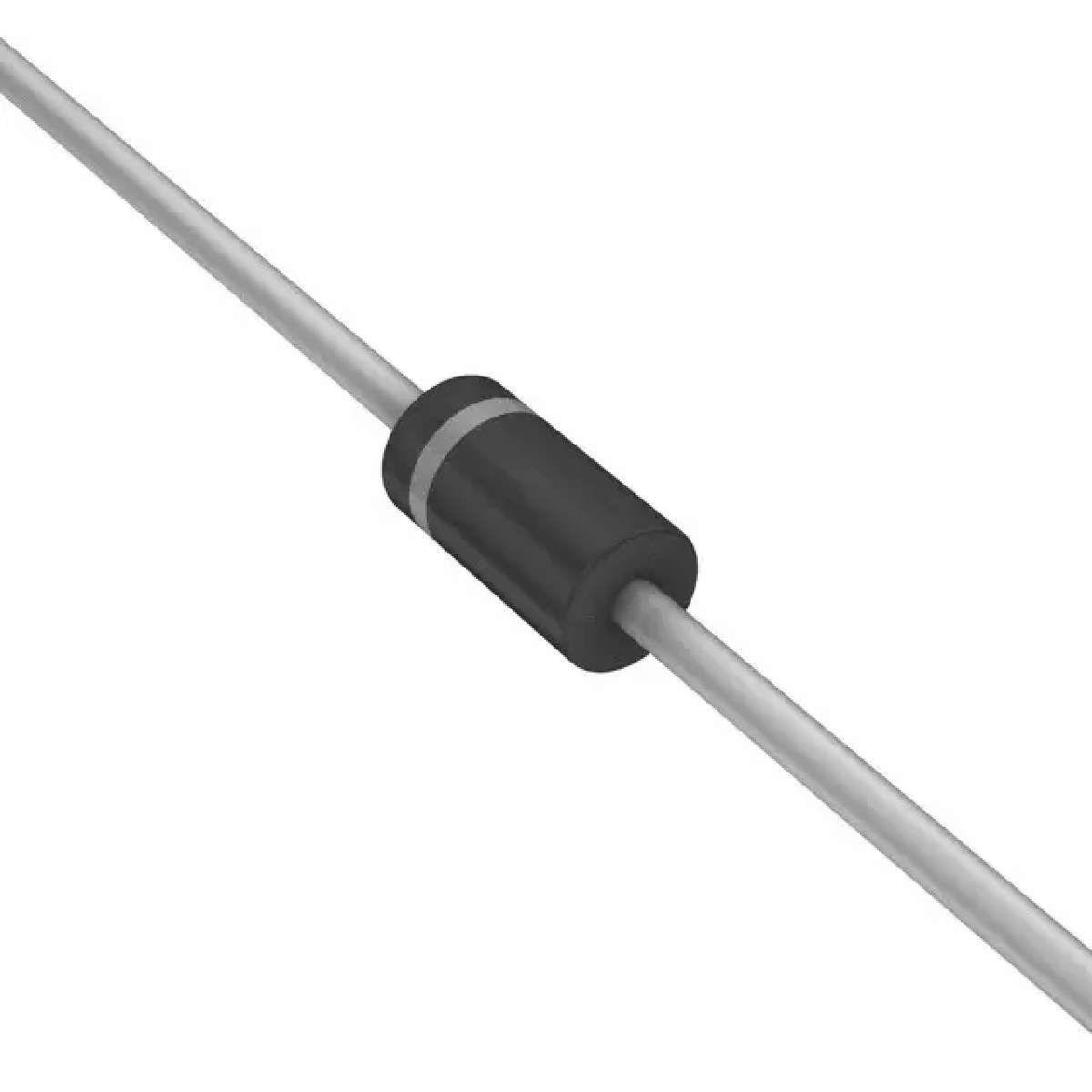

ON SEMICONDUCTOR 1N5817G 肖特基整流器, 通用, 单, 20 V, 1 A, DO-204AL, 2 引脚, 450 mV
The is an axial-lead Schottky Rectifier with epoxy moulded case. This series employs the Schottky barrier principle in a large area metal-to-silicon power diode. The state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free-wheeling diodes and polarity protection diodes.
额定电压DC 20.0 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
针脚数 2
正向电压 450mV @1A
极性 Standard
热阻 80℃/W RθJA
最大反向击穿电压 20 V
正向电流 1 A
最大正向浪涌电流(Ifsm) 25 A
正向电压Max 450 mV
正向电流Max 1000 mA
工作温度Max 125 ℃
工作温度Min -65 ℃
工作结温Max 125 ℃
耗散功率Max 1250 mW
安装方式 Through Hole
引脚数 2
封装 DO-204AL
长度 5.2 mm
封装 DO-204AL
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5817G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5817RLG 安森美 | 类似代替 | 1N5817G和1N5817RLG的区别 |
1N5817RL 安森美 | 类似代替 | 1N5817G和1N5817RL的区别 |
1N5817 意法半导体 | 功能相似 | 1N5817G和1N5817的区别 |
