1825059-6

50mΩ 绝缘电阻：1000 MΩ @100 V 直流 机械寿命：1000 次循环 ### DIL 表面安装### 双在线开关微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

齐平执行器滑动

高压摩擦触点，可用水或溶液清洁，无需胶带密封

可耐汽相回流焊接或波焊条件

触点电阻：50mΩ

绝缘电阻：1000 MΩ @100 V 直流

机械寿命：1000 次循环

欧时:
DIP switch,SMT,SPST,2 pos,flush slide

立创商城:
1825059-6

艾睿:

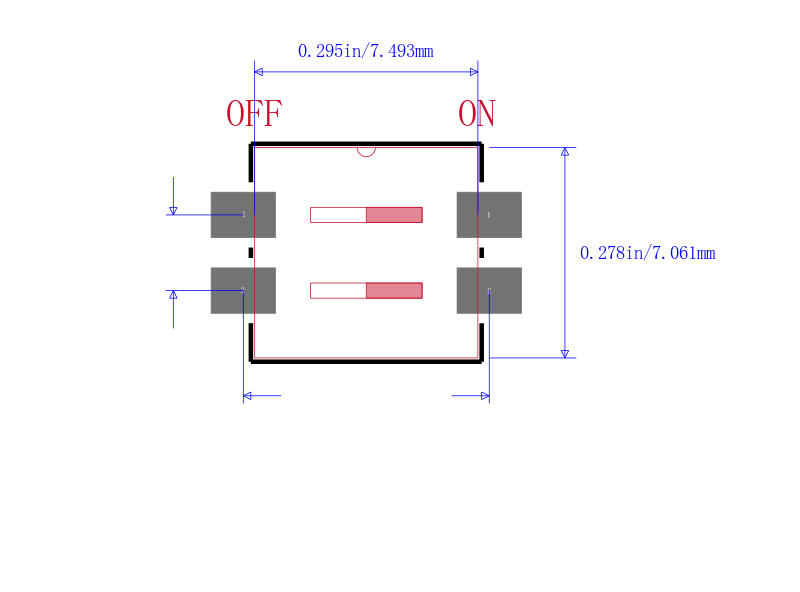

Easily customize your printed circuit with the use of the 1825059-6 dual in-line package switch, designed from TE Connectivity. This device has a maximum current rating of 0.1 A @ 24VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -30 °C to 85 °C. The 1825059-6 DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 24 VDC. This product is 7.06 mm long, 3.5 mm tall and 9.3 mm deep.

安富利:
Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R

Chip1Stop:
Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R

Verical:
Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Electro Sonic:
ADF02STTR04=DIP S,FLUSH,SMT-GW
