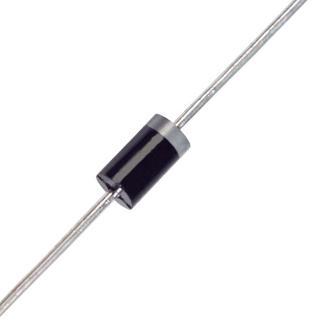

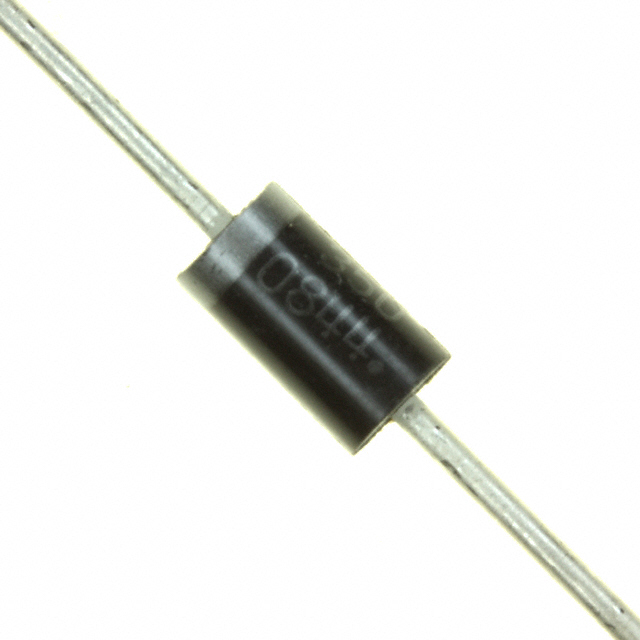

ON SEMICONDUCTOR 1N5404G 快速恢复功率整流器
整流器,2A 至 3A,
### 标准
带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
欧时:
### 整流器二极管,2A 至 3A,ON Semiconductor### 标准带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。### 二极管和整流器,ON Semiconductor
得捷:
DIODE GEN PURP 400V 3A DO201AD
立创商城:
1N5404G
贸泽:
Rectifiers 400V 3A Standard
e络盟:
ON SEMICONDUCTOR 1N5404G 快速恢复功率整流器
艾睿:
Converting from AC to DC is simple when using a switching diode 1N5404G rectifier from ON Semiconductor. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 3 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
RECTIFIER; STANDARD RECOVERY RECTIFIER; 3A IF; 1.0 V MAX.; 400V; CASE 267-03
安富利:
Diode Switching 400V 3A 2-Pin Case 267-05 Box
Chip1Stop:
Diode Switching 400V 3A 2-Pin Case 267-05 Box
Verical:
Rectifier Diode Switching 400V 3A 2-Pin DO-201AD Box
Newark:
# ON SEMICONDUCTOR 1N5404G Standard Recovery Diode, 400 V, 3 A, Single, 1 V, 125 A
罗切斯特:
Diode Switching 400V 3A 2-Pin Case 267-05 Box
Online Components:
Diode Switching 400V 3A 2-Pin Case 267-05 Box
额定电压DC 400 V
额定电流 3.00 A
无卤素状态 Halogen Free
输出电流 ≤3.00 A
针脚数 2
正向电压 1 V
极性 Standard
热阻 53℃/W RθJA
正向电流 3 A
最大正向浪涌电流(Ifsm) 125 A
正向电压Max 1 V
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 9.5 mm
封装 DO-201AD
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5404G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5404RL 安森美 | 类似代替 | 1N5404G和1N5404RL的区别 |
1N5404 安森美 | 类似代替 | 1N5404G和1N5404的区别 |
