1-1571999-6

TE CONNECTIVITY  1-1571999-6  DIP / SIP开关, SPST, 通孔安装, 6 电路, DIP, 24 V

琴键式执行器

高压摩擦触点可用水或溶液清洁，无需胶带密封

可耐汽相回流焊接或波焊条件

触点电阻：50mΩ

### 注

除非另有说明，否则这些开关不适于浸泡清洗。

欧时:
### 琴键式执行器开关高压摩擦触点可用水或溶液清洁，无需胶带密封 可耐汽相回流焊接或波焊条件 触点电阻：50mΩ ### 注除非另有说明，否则这些开关不适于浸泡清洗。### DIL 直通板

e络盟:
DIP / SIP开关, 6 电路, 钢琴键, 通孔安装, SPST, 24 V, 100 mA

艾睿:

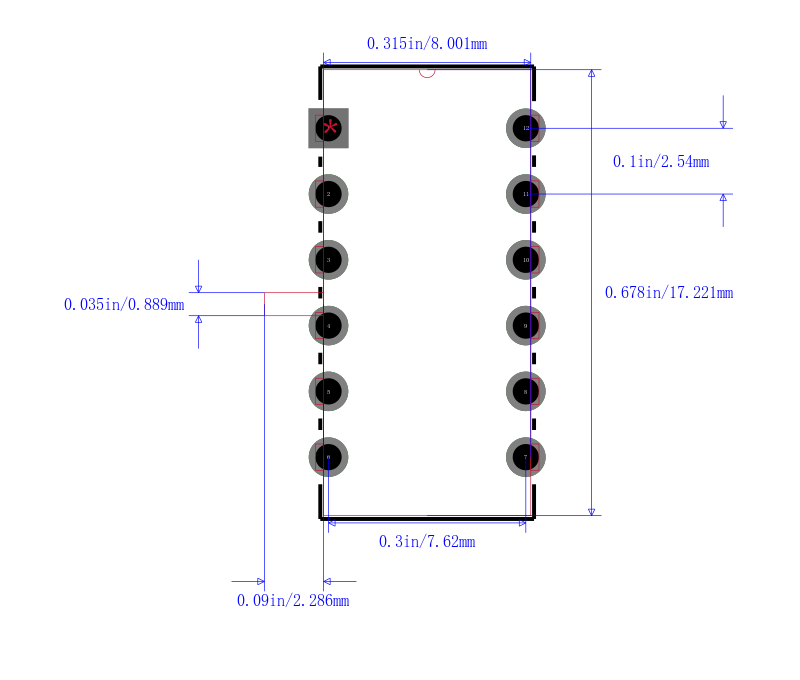

The 1-1571999-6 dual in-line package switch, developed by TE Connectivity, can give you electronic flow control within your printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 24VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1-1571999-6 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 17.22 mm long, 5.99 mm tall and 10.25 mm deep.

安富利:
Switch DIP OFF ON SPST 6 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 6 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 6 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Box/Tube

Newark:
# TE CONNECTIVITY  1-1571999-6  DIP SWITCH, 6POS, SPST, PIANO

MASTER:
DIP SWITCH ASSEMBLY ADP/PA SERIES

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Online Components:
ADP0604=PIANO DIP SWITCH

Electro Sonic:
ADP0604=PIANO DIP SWITCH
