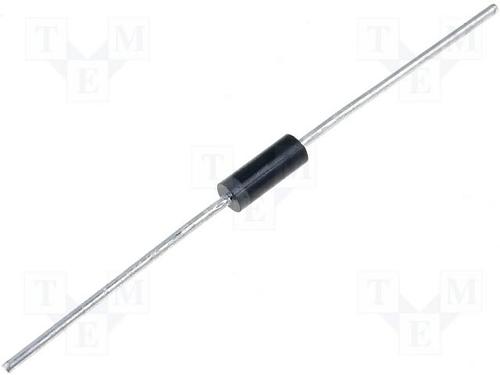

ON SEMICONDUCTOR 1N5333BRLG 单管二极管 齐纳, xxxRLG, 3.3 V, 5 W, 017AA, 5 %, 2 引脚, 200 °C
齐纳 5W Surmetic,1N5333 至 1N5346 系列,
完整的 5 W 系列,带严格限制和增强型工作特性。
得捷:
DIODE ZENER 3.3V 5W AXIAL
欧时:
### 齐纳二极管 5W Surmetic,1N5333 至 1N5346 系列,ON Semiconductor完整的 5 W 系列齐纳二极管,带严格限制和增强型工作特性。### Zener Diodes, ON Semiconductor
立创商城:
1N5333BRLG
艾睿:
Need to operate a diode in the reverse-breakdown region? No worries, use a voltage regulator 1N5333BRLG zener diode from ON Semiconductor. This device has a maximum regulator current of 1440 mA. Its test current is 380 mA. Its maximum power dissipation is 5000 mW. Its maximum leakage current is 300 μA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C. It is made in a single configuration. This zener device has a nominal voltage of 3.3 V and a voltage tolerance of 5%.
Allied Electronics:
1N5333BRLG Zener Diode, 3.3V 5% 5 W Through Hole 2-Pin DO-15
安富利:
Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 T/R
Chip1Stop:
Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 T/R
TME:
Diode: Zener; 5W; 3.3V; Package: reel, tape; 017AA
Verical:
Zener Diode Single 3.3V 5% 3Ohm 5000mW 2-Pin Case 017AA-01 T/R
Newark:
# ON SEMICONDUCTOR 1N5333BRLG Zener Single Diode, 3.3 V, 5 W, 017AA, 5 %, 2 Pins, 200 °C
Win Source:
DIODE ZENER 3.3V 5W AXIAL
额定电压DC 3.30 V
额定电流 1.44 A
容差 ±5 %
额定功率 5.00 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.2V @1A
耗散功率 5 W
测试电流 380 mA
稳压值 3.3 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 200 ℃
工作温度Min -65 ℃
耗散功率Max 5 W
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 8.89 mm
宽度 3.68 mm
高度 3.68 mm
封装 DO-35-2
材质 Plastic
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5333BRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5333B 安森美 | 完全替代 | 1N5333BRLG和1N5333B的区别 |
1N5333BG 安森美 | 类似代替 | 1N5333BRLG和1N5333BG的区别 |
1N5913BRLG 安森美 | 类似代替 | 1N5333BRLG和1N5913BRLG的区别 |
