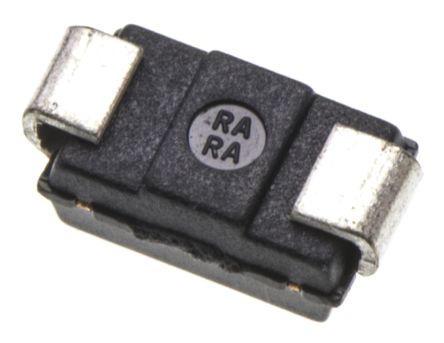

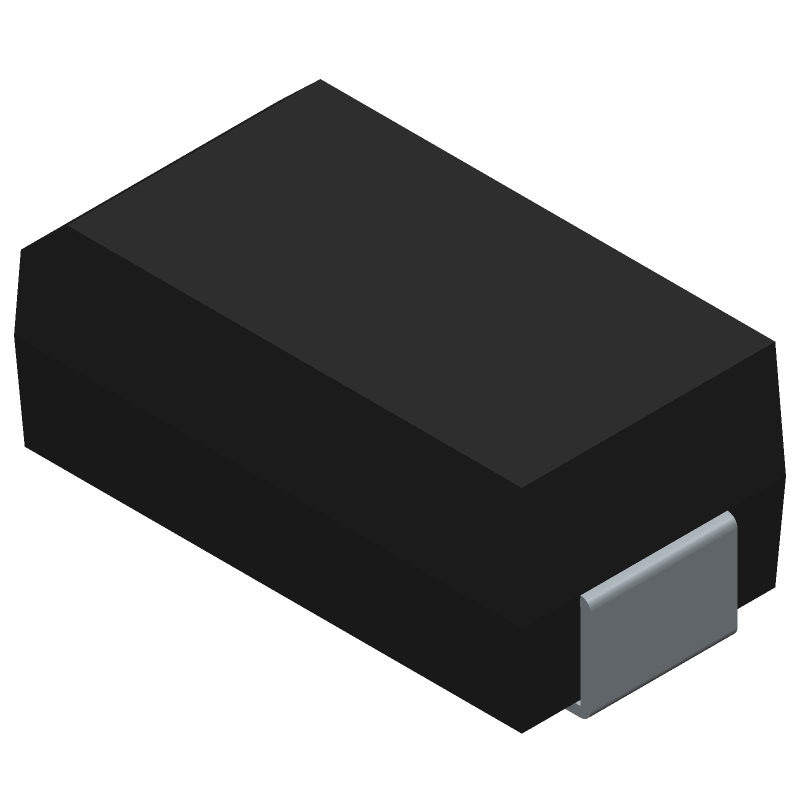

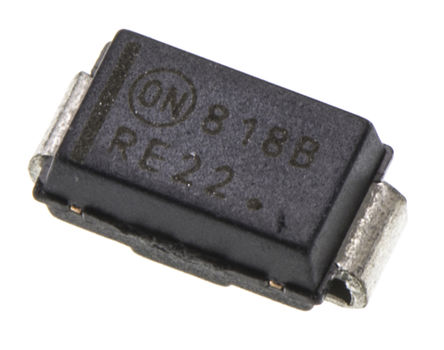

ON SEMICONDUCTOR 1SMA5918BT3G. 齐纳二极管
齐纳 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,
### Zener Diodes, ON Semiconductor
得捷:
DIODE ZENER 5.1V 1.5W SMA
欧时:
### 齐纳二极管 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,ON Semiconductor### Zener Diodes, ON Semiconductor
立创商城:
1SMA5918BT3G
贸泽:
Zener Diodes 5.1V 1.5W
e络盟:
ON SEMICONDUCTOR 1SMA5918BT3G. 齐纳二极管
艾睿:
Now you can operate a diode in its reverse breakdown region by using a voltage regulator 1SMA5918BT3G zener diode from ON Semiconductor. Its maximum power dissipation is 1500 mW. Its test current is 73.5 mA. Its maximum leakage current is 2.5 μA. This device has a maximum regulator current of 294 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
1SMA5918BT3G Zener Diode; 5.1V 5% 0.5 WSMT 2-Pin SMA
安富利:
Diode Zener Single 5.1V 5% 500mW 2-Pin SMA T/R
Chip1Stop:
Diode Zener Single 5.1V 5% 1.5W Automotive 2-Pin SMA T/R
Verical:
Zener Diode Single 5.1V 5% 4Ohm 1500mW Automotive 2-Pin SMA T/R
Newark:
# ON SEMICONDUCTOR 1SMA5918BT3G Zener Single Diode, 5.1 V, 1.5 W, DO-214AC, 5 %, 2 Pins, 150 °C
罗切斯特:
Diode Zener Single 5.1V 5% 1.5W Automotive 2-Pin SMA T/R
Online Components:
Diode Zener Single 5.1V 5% 1.5W Automotive 2-Pin SMA T/R
Win Source:
DIODE ZENER 5.1V 1.5W SMA
额定电压DC 5.10 V
容差 ±5 %
额定功率 1.50 W
无卤素状态 Halogen Free
击穿电压 5.36 V
针脚数 2
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 73.5 mA
稳压值 5.1 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.32 mm
宽度 2.6 mm
高度 2 mm
封装 DO-214AC
材质 Plastic
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1SMA5918BT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMA5918BT3 安森美 | 类似代替 | 1SMA5918BT3G和1SMA5918BT3的区别 |
SMAJ5918B-TP 美微科 | 类似代替 | 1SMA5918BT3G和SMAJ5918B-TP的区别 |
SZ1SMA5918BT3G 安森美 | 功能相似 | 1SMA5918BT3G和SZ1SMA5918BT3G的区别 |
