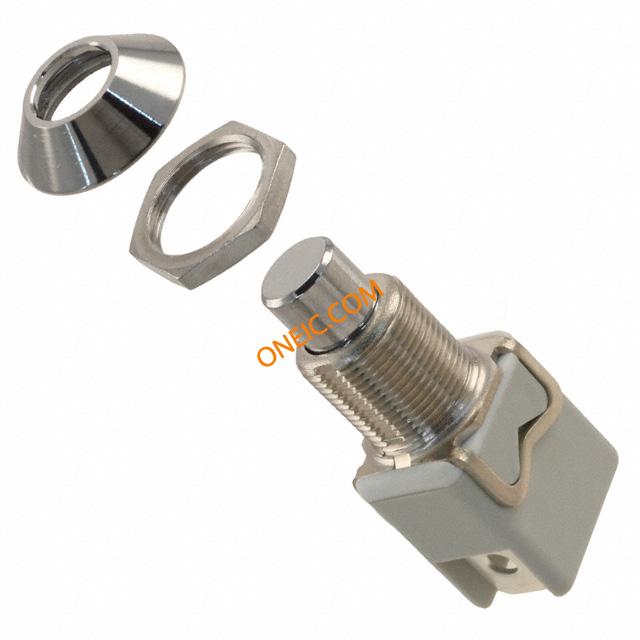

Switch Push Button N.C. SPST Round Curved Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Switch Push Button N.C. SPST Round Curved Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
立创商城:
1212MA
Verical:
Switch Push Button N.C. SPST Curved Round Plunger 8A 250VAC 24VDC Momentary Contact Panel Mount Quick Connect/Solder Lug
MASTER:
Switch Push Button N.C. SPST Round Curved Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Powell:
Momentary Pushbutton Switch
Online Components:
Switch Push Button N.C. SPST Round Curved Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Electro Sonic:
Switch Push Button N.C. SPST Round Curved Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
额定电压DC 24 V
额定电压AC 125 V
额定电流 8A AC, 4A DC
方向 Vertical
触点类型 SPST-NC
工作温度Max 55 ℃
工作温度Min -20 ℃
额定电压DC Max 24 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
封装 -
高度 38.7 mm
封装 -
触点材质 Silver
工作温度 -20℃ ~ 55℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509035
