1.14001.5010000

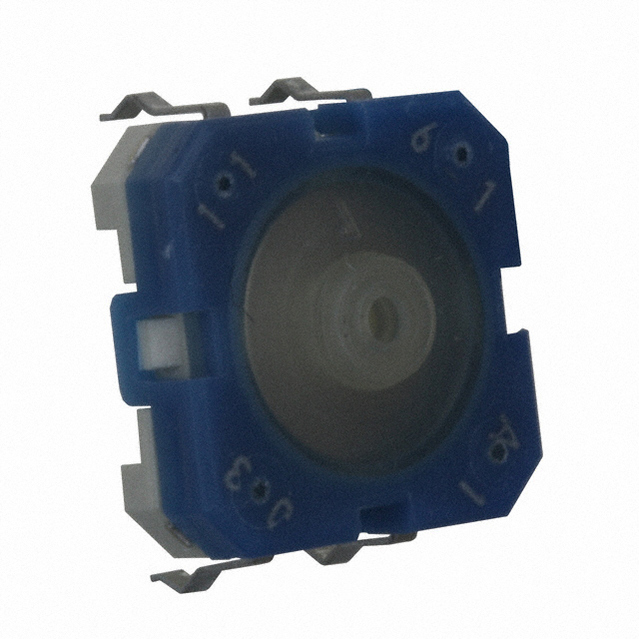

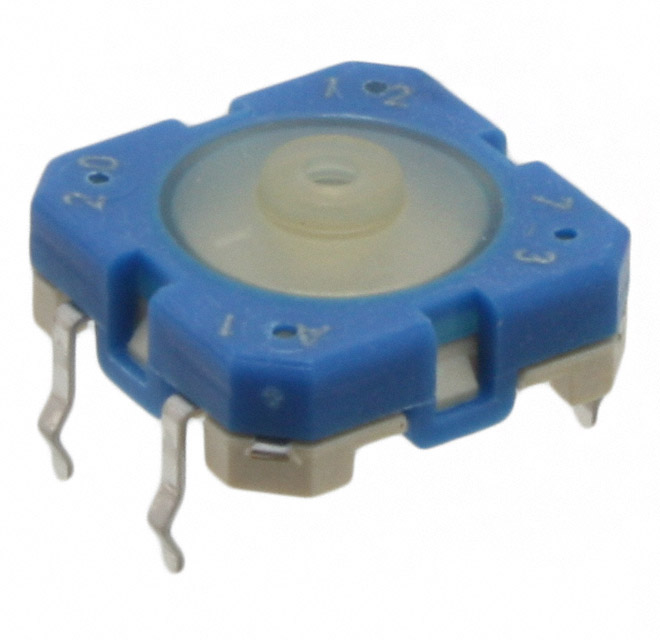

Switch Key N.O. SPST 0.1A 42VAC 42VDC 1VA 3.6N PC Pins Thru-Hole Tube

By connecting the short travel key switch from C&K Components to your circuit, you"ll be able to power the circuit on and off by simply turning a key. It has a SPST configuration. This part has an operating temperature range of -40 °C to 80 °C. It has 4 terminals. The 1.14001.5010000 part has a PC pin termination style. The maximum AC voltage rating is 42 VAC and the maximum DC voltage rating is 42 VDC. This product"s terminal pitch is 5 mm. This product is 12 mm long, 5 mm tall and 12 mm deep.
