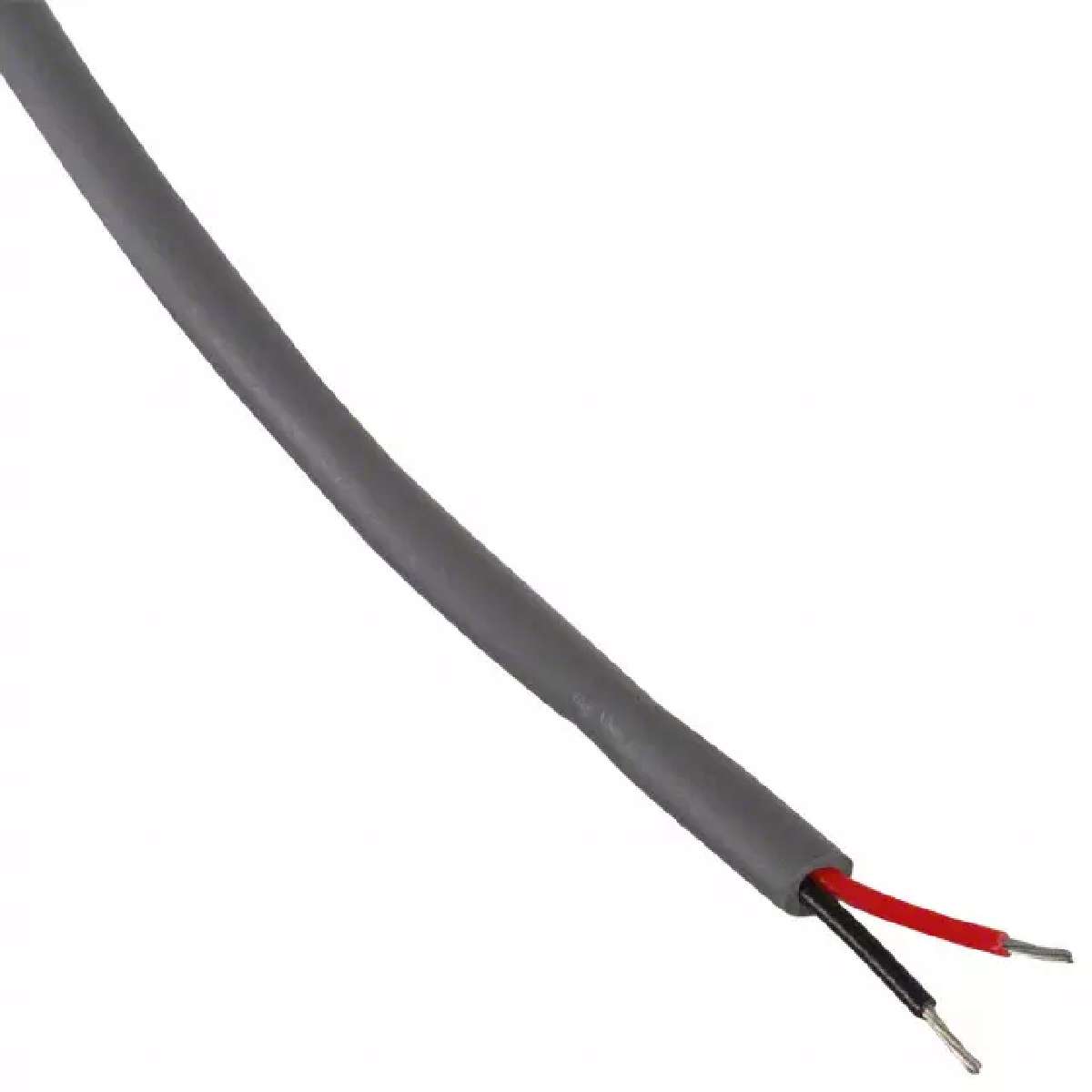

ALPHA WIRE 1172C SL002 Multiconductor Unshielded Cable, Control, Slate, 2Conductor, 22AWG, 0.35mm², 500Ft, 152.4m
The is a 500ft 2-conductor 22AWG 300V slate unshielded Communication and Control Cable with stranded or solid tinned copper conductors, PVC insulation, slate PVC jacket. The smallest unshielded cable diameter for use in low-noise environments. Conductors are identified by different colours.
- .
- High performance
- .
- 0.81mm Jacket thickness
- .
- REACH regulation EC 1907/2006
线规 22 AWG
额定电压DC 300 V
易燃性等级 CSA FT-4
屏蔽 No
芯数 2
工作温度Max 75 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 500 ft
颜色 Slate
绝缘材质 PVC
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Imaging, Video & Vision, Commercial, Communications & Networking, Audio, Automation & Process Control, Security, Computers & Computer Peripherals, Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
