1.14001.5020000

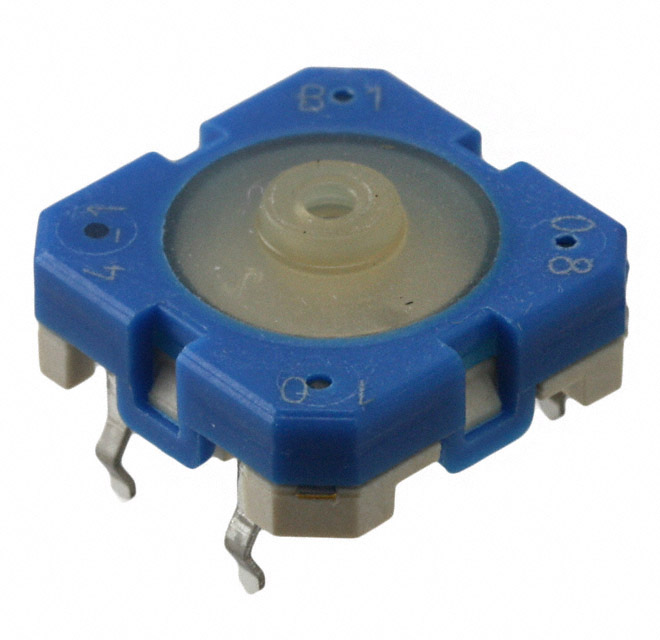

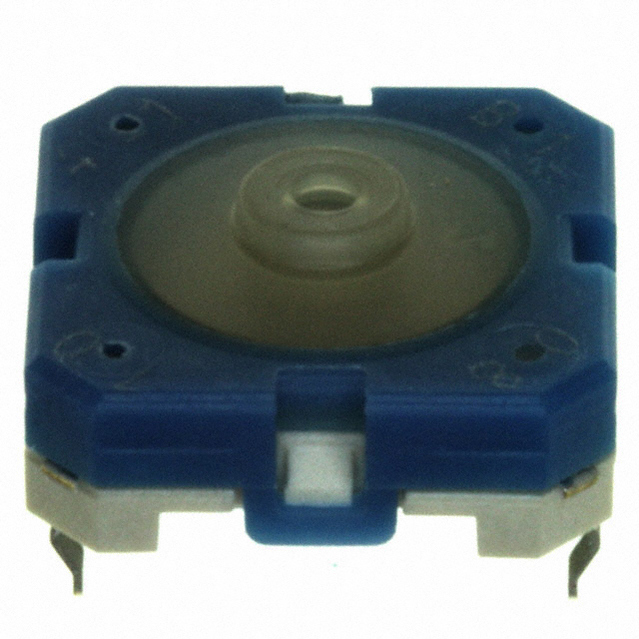

Switch Key N.O. SPST 0.1A 42VAC 42VDC 1VA 3.6N PC Pins Thru-Hole Tube

By using a simple turn of the key, the short travel key switch from C&K Components can provide a quick, secure method for toggling the power on and off in your project. It has a SPST configuration. This part has a minimum operating temperature of -40 °C and a maximum of 80 °C. It has 4 terminals. The 1.14001.5020000 part has a PC pin termination style. The maximum AC voltage rating is 42 VAC and the maximum DC voltage rating is 42 VDC. This product"s terminal pitch is 5 mm. This product is 12 mm long, 5 mm tall and 12 mm deep.
