1M1-DP3-R1/2-M1QE参数规格_中文资料_数据手册PDF

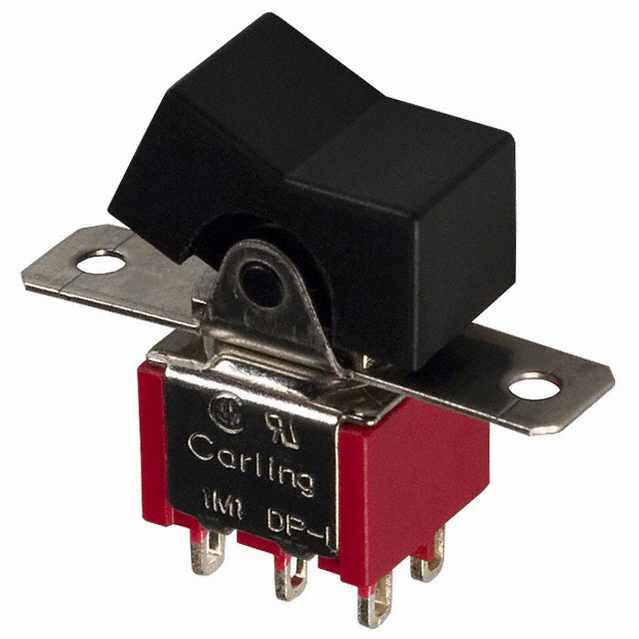

1M1-DP3-R1/2-M1QE概述

Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk

Verical:
Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk

MASTER:
Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk

Online Components:
Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk

Electro Sonic:
Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk

1M1-DP3-R1/2-M1QE中文资料参数规格

技术参数

触点电镀 Silver

接触器类型 Rocker

排数 2

方向 Vertical

触点类型 DPDT

工作温度Max 85 ℃

工作温度Min -30 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Solder Lug, Panel

外形尺寸

长度 12.7 mm

宽度 11.4 mm

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -30℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买1M1-DP3-R1/2-M1QE

型号： 1M1-DP3-R1/2-M1QE

制造商： Carling Technologies 嘉灵科技

描述：Switch Rocker ON OFF ON DPDT Solder Lug Small Rocker 5A 250VAC 28VDC Bulk
