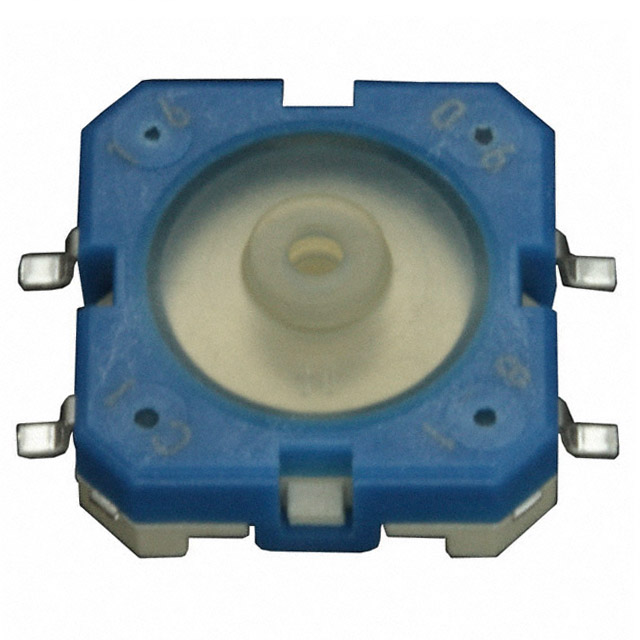

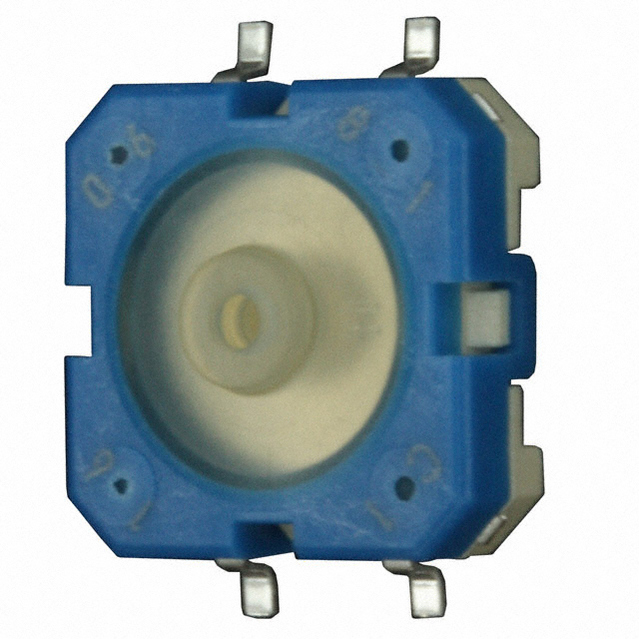

Switch Key N.O. SPST 0.1A 42VAC 42VDC 1VA 3.6N Gull Wing SMD T/R
By connecting the short travel key switch from C&K Components to your circuit, you"ll be able to power the circuit on and off by simply turning a key. It has a SPST configuration. This part has an operating temperature range of -40 °C to 80 °C. It has 4 terminals. The 1.14001.5030000 part has a gull wing termination style. The maximum AC voltage rating is 42 VAC and the maximum DC voltage rating is 42 VDC. This product is 12 mm long, 5.11 mm tall and 15 mm deep. This product"s terminal pitch is 5 mm.
额定电压DC 42 V
额定电压AC 42 V
额定电流 100mA AC, 100mA DC
绝缘电阻 10000 MΩ
排数 2
额定电流Max 0.1 A
额定功率Max 1 VA
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压DC Max 42 V
额定电压AC Max 42 V
接触电阻Max 100 mΩ
长度 12 mm
高度 5.11 mm
触点材质 Gold
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
