1241.1600.11

SCHURTER  1241.1600.11  轻触开关, 不发光, 1.87 N, 42 V, 50 mA, 焊接

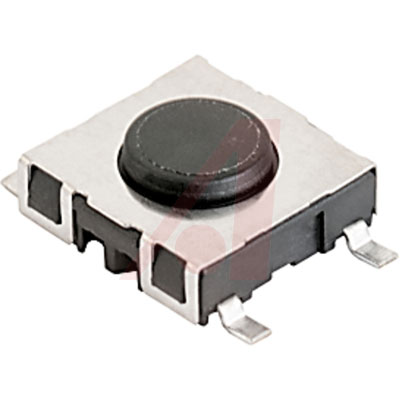

SMT Tact Switches - SMS Series

Surface mount tact switches perfect for automatic mounting and suitable for SMT IR-Reflow soldering. These tact switches are available in a choice of IP40 or IP67 protection, the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes. Further options include Gullwing and J terminal versions. The J terminal types of tact switch can be lined up with a spacing of 12.7mm in one direction and >13.5mm in the other. The Gullwing terminal types can be arranged with a spacing of 12.7mm in one direction and 17.5mm in the other direction.

Schurter SMS series of tact switches have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions.

Momentary switching action

Maximum switching voltage: 30Vac, 42Vdc

Maximum switching current: 50mA

Rated breaking capacity: 0.12W

Contact material: Gold

Life: >1 x 106 cycles

Operating temperature: -40 to + 85°C
