Schurter THT Tact Switches - PMS SeriesThrough hole mounting tact switches suitable for Wave soldering. The Schurter PMS series of tact switches are available in a choice of IP40 or IP67 protection, the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes. These tact switches require a minimum spacing of 12.7mm to 15mm, have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions.Momentary switching action Maximum switching voltage: 30Vac, 42Vdc Maximum switching current: 50mA Rated breaking capacity: 0.12W Contact material: Gold Life: >1 x 106 cycles Operating temperature: -40 to + 85°C 附加信息 --- **RS 库存号** | **制造商部件号** | **执行器** | **防护等级 ** 607-7090 | 1241.1602 | 短 | IP40 607-7113 | 1241.1614 | 长 | IP40 607-7107 | 1241.1608 | 短 | IP67 607-7129 | 1241.1620 | 长 | IP67 ### 触控

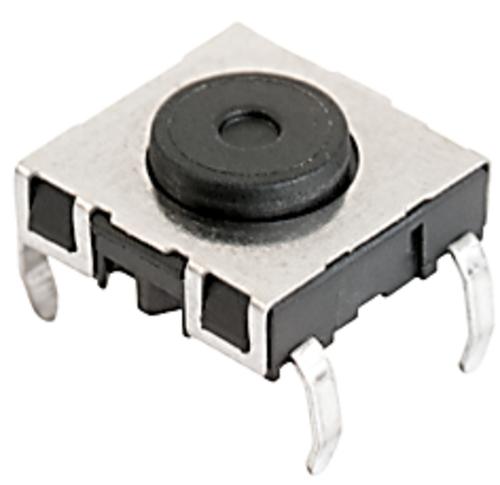

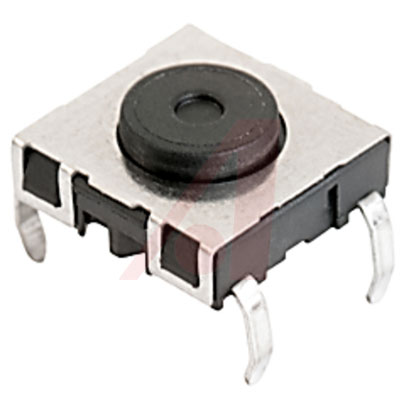

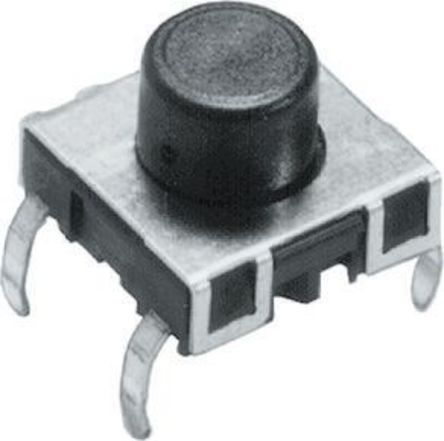

THT Tact Switches - PMS Series
Through hole mounting tact switches suitable for Wave soldering. The Schurter PMS series of tact switches are available in a choice of IP40 or IP67 protection, the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes.
These tact switches require a minimum spacing of 12.7mm to 15mm, have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions.
Momentary switching action
Maximum switching voltage: 30Vac, 42Vdc
Maximum switching current: 50mA
Rated breaking capacity: 0.12W
Contact material: Gold
Life: >1 x 106 cycles
Operating temperature: -40 to + 85°C
### 触控
额定电压DC 42 V
额定电压AC 30 V
触点类型 SPST-NO
触点额定电流 50mA @42VDC
额定电流Max 0.05 A
额定功率Max 0.12 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 42 V
额定电压AC Max 30 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 -
高度 7.6 mm
封装 -
触点材质 Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Box
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509035
