1SMB6.0AT3G

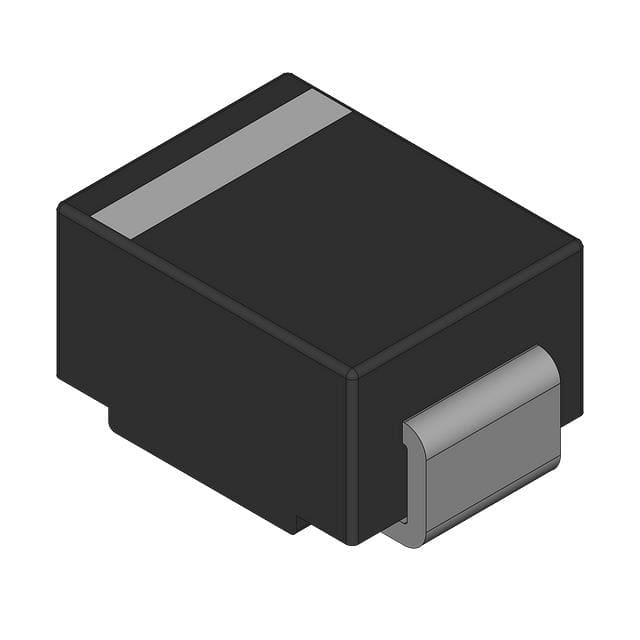

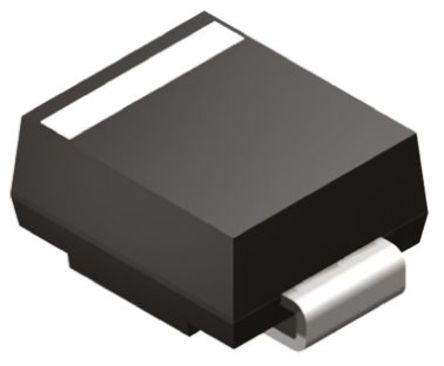

ON SEMICONDUCTOR  1SMB6.0AT3G  TVS二极管, AEC-Q221, AEC-Q101 1SMB系列, 单向, 6 V, 10.3 V, DO-214AA, 2 引脚

极性Polarization| 单向 Unidirectional

\---|---

反向关断电压/工作电压VRWMReverse Standoff Voltage| 6V

反向击穿电压VBRBreakdown Voltage| 7.02V

峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 600W

峰值脉冲电流IPPmPeak Forward Surge Current| 58.3A

额定耗散功率PdPower dissipation| 3W

Description & Applications| 600 Watt Peak Power Zener Transient Voltage Suppressors；Features • Working Peak Reverse Voltage Range − 5.0 V to 170 V • Standard Zener Breakdown Voltage Range − 6.7 V to 199 V • Peak Power − 600 W @ 1.0 ms • ESD Rating of Class 3 >16 kV per Human Body Model • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage < 5.0 uA Above 10 V • UL 497B for Isolated Loop Circuit Protection • Response Time is Typically < 1.0 ns • Pb−Free Packages are Available

描述与应用| 600瓦峰值功率齐纳瞬态电压抑制器;特性 •工作峰值反向电压范围 - 5.0 V至170 V •标准齐纳击穿电压范围 - 6.7 V至199 V •峰值电力 - 600 W@1.0ms •每人体模型ESD额定值的类3（>16千伏） •最大钳位电压峰值脉冲电流 •低漏高于10 V<5.0 UA •UL497B用于隔离回路的电路保护 •响应时间通常<1.0ns •无铅包可用
