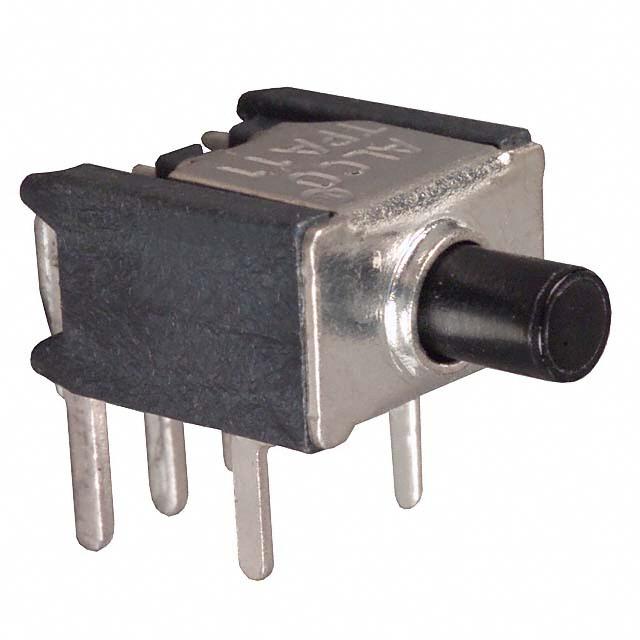

Switch Tactile ON ON SPDT Round Plunger PC Pins 20VAC 20VDC 0.4VA 3.92N Thru-Hole Bulk
The tactile switch from lets you quickly turn on your system by use of pressure. It has a SPDT configuration. This tactile switch has a minimum operating temperature of -30 °C and a maximum of 65 °C. The 1-1825096-0 tactile switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 8.13 mm long, 5.74 mm tall and 12.9 mm deep. This black round plunger actuator is 3.84 mm long.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
触点类型 SPDT
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
安装方式 Through Hole
封装 Thermoplastic LCP
长度 8.13 mm
宽度 12.9 mm
高度 5.74 mm
封装 Thermoplastic LCP
触点材质 Copper Alloy
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-1825096-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
TPB11FGVRA0 泰科 | 完全替代 | 1-1825096-0和TPB11FGVRA0的区别 |
TPA11FGRA0 泰科 | 完全替代 | 1-1825096-0和TPA11FGRA0的区别 |
